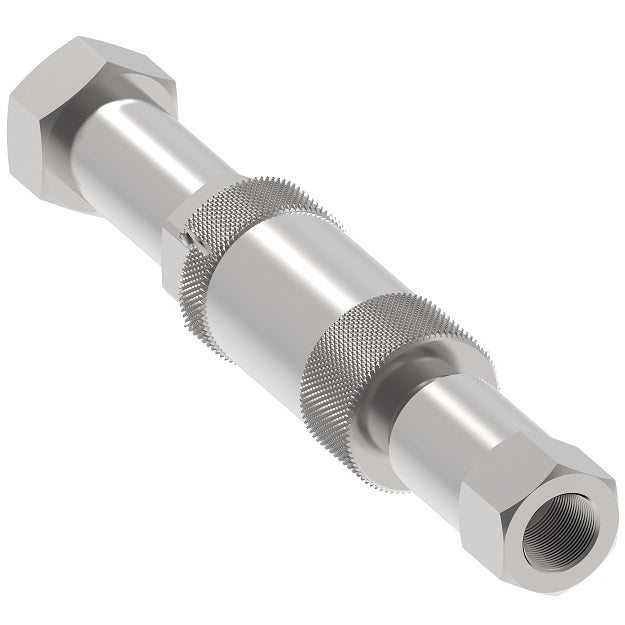

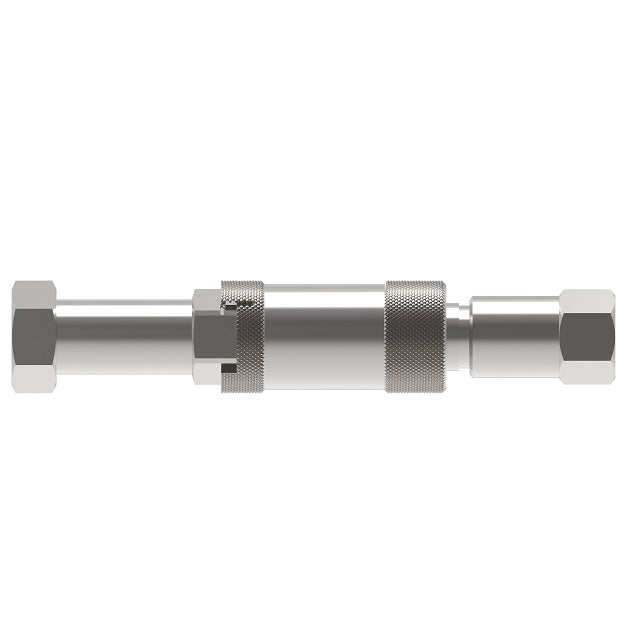

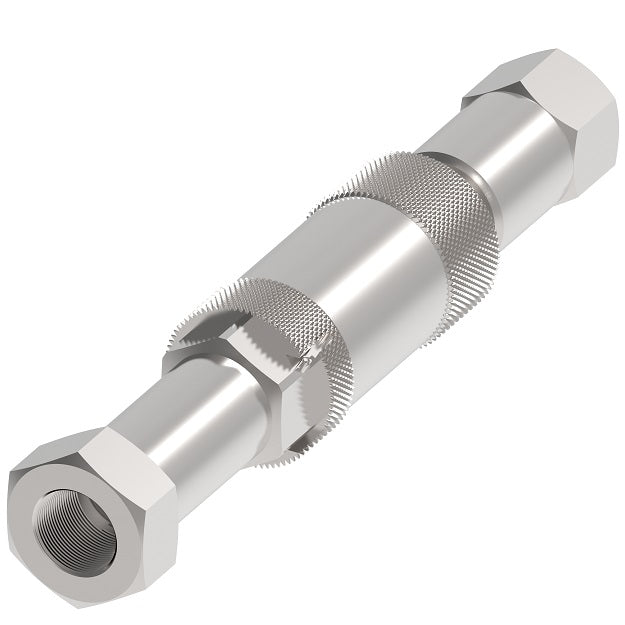

FD35-1000-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Complete Plug and Socket Set | FKM Seal | Valved | Steel

FD35-1000-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Complete Plug and Socket Set | FKM Seal | Valved | Steel

$131.51 - $131.51

$131.51

$131.51 - $131.51

$131.51

Hansen® by Danfoss
FD35 Series | High Pressure 10,000 psi Ball Latch

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD35 Series ball latch has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10,000 psi.

Quantity

Specifications for Variant SKU: FD35-1000-06-06 Danfoss
Brand:	Hansen
Series:	FD35 Series
Shape (Orientation):	Straight
Material(s):	Steel
Seal Material(s):	Viton/FKM
Special Properties:	Valved

Product Features:	Safety sleeve lock prevents accidental disconnection. Heavy duty back-up ring prevents O-Ring extrusion. Self-sealing poppet valves provide excellent high-and low-pressure sealing.
Applications & Markets:	10,000 psi Hydraulic Applications Hydraulic Tool Hydraulic Ram and Work Loading
Materials:	Standard body material: High-resistance carbon steel with zinc trivalent plating. Standard seal materials: FKM Heat-treated and plated steel for greater wear and corrosion resistance.

Body Size	Max. Operating Pressure		Min. Burst Pressure		Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
3/8"	700 bar	10,000 psi	2,800 bar	40,000 psi	28 in.Hg	8 lmp	2 gpm	0.50 cc. max	0.50 cc. max

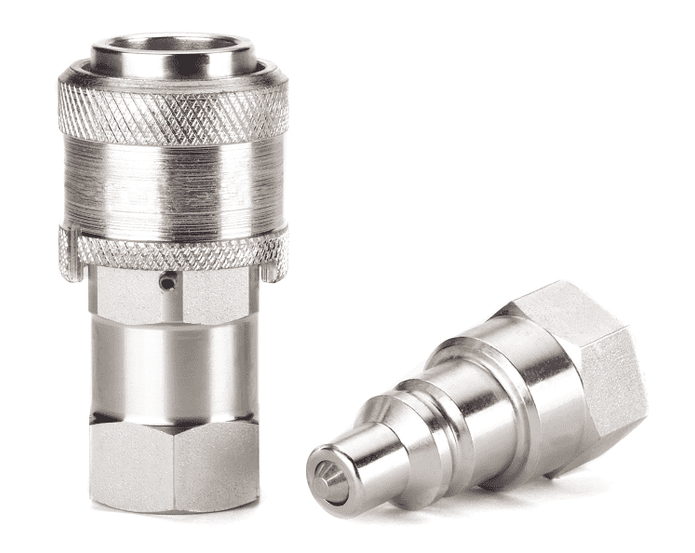

Socket/Female (Figure 1)			Plug/Male (Figure 2)			Complete (Figure 3)
Dimensions (Female NPT, Valved)
Part Number	Coupling Type	Body Size	Port Size	Thread	Figure	Dimensions
FKM	Coupling Type	Body Size	Port Size	Thread	Figure	A	B	Hex
FD35-1002-06-06	Plug/Male	3/8"	3/8"	3/8-18 Female NPT	1	2.12" (53.8mm)	-	0.94" (23.9mm)
FD35-1001-06-06	Socket/Female	3/8"	3/8"	3/8-18 Female NPT	2	2.56" (65.0mm)	1.27" (32.3mm)	0.94" (23.9mm)
FD35-1000-06-06	Complete	3/8"	3/8"	3/8-18 Female NPT	3	3.54" (89.9mm)	-	-
Dust Cap & Dust Plug Combo
FD35-1042-06	Dust Cap/Plug	3/8"
