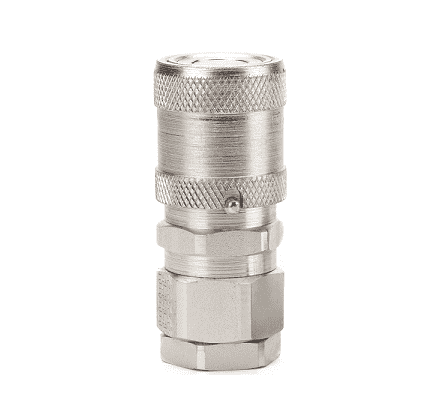

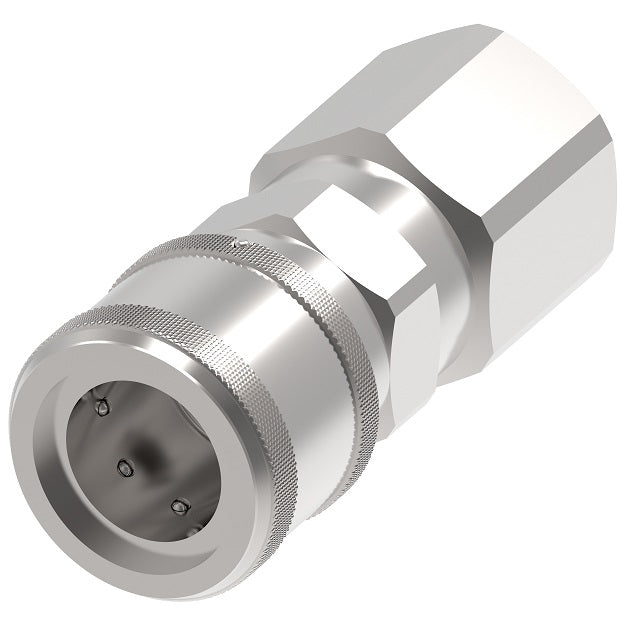

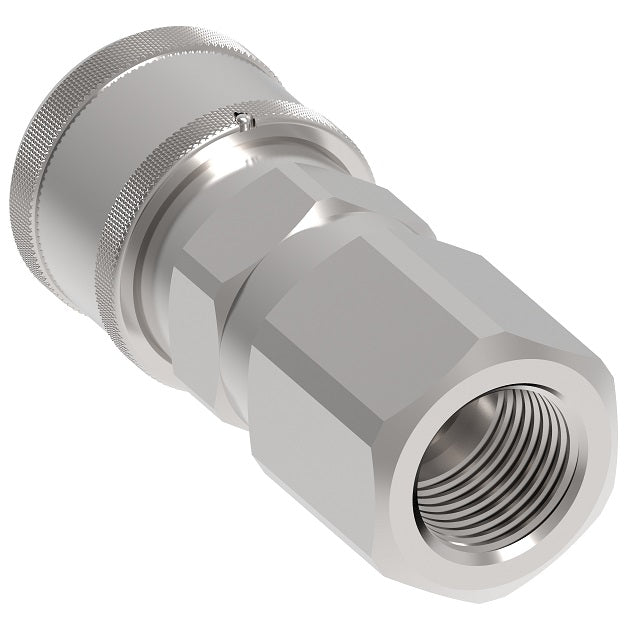

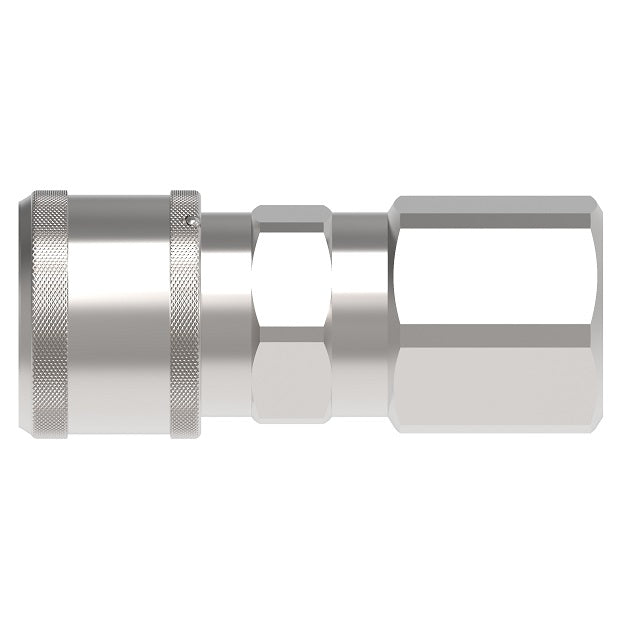

FD49-1001-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD49 Series | 1/2" Female NPT x 3/8" NFPA T3.20.15 HTMA Interchange | Socket | Valved | Buna-N Seal | Steel
FD49-1001-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD49 Series | 1/2" Female NPT x 3/8" NFPA T3.20.15 HTMA Interchange | Socket | Valved | Buna-N Seal | Steel
FD49-1001-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD49 Series | 1/2" Female NPT x 3/8" NFPA T3.20.15 HTMA Interchange | Socket | Valved | Buna-N Seal | Steel
FD49-1001-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD49 Series | 1/2" Female NPT x 3/8" NFPA T3.20.15 HTMA Interchange | Socket | Valved | Buna-N Seal | Steel
FD49-1001-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD49 Series | 1/2" Female NPT x 3/8" NFPA T3.20.15 HTMA Interchange | Socket | Valved | Buna-N Seal | Steel

FD49-1001-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD49 Series | 1/2" Female NPT x 3/8" NFPA T3.20.15 HTMA Interchange | Socket | Valved | Buna-N Seal | Steel

$145.55 - $145.55
$145.55
$145.55 - $145.55
$145.55

Hansen® by Danfoss
FD49 Series | NFPA Standard T3.20.15 HTMA Interchange

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD49 Series meets NFPA standard T3.20.15 and was developed in conjunction with HTMA (Hydraulic Tool Manufacturer's Association).

Danfoss' Twin-Guard™ sealing system prevents weepage at low pressures and allows connection and disconnection against pressure up to 500 psi.
Specifications for Variant SKU: FD49-1001-08-06 Danfoss
Brand: Hansen
Series: FD49 Series
Shape (Orientation): Straight
Material(s): Zink-Plated Steel
Seal Material(s): PTFE & Buna-N/Nitrile Rubber
Special Properties: Valved
Product Features:
  • Dual flush face valving for minimal fluid loss and air inclusion.
  • Tubular valve and sleeve construction for high fluid flow with low pressure drop.
  • Push-to-connect latching for one hand operation.
Applications & Markets:
  • Hydraulic tool (HTMA interchange)
  • Hydraulic and fluid transfer
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating.
  • Standard seal material: Teflon channel seal and Buna-N O-Ring backup.
About Twin-Guard™ Seal System:
  • Danfoss' Twin-Guard™ seal system consists of channel and Buna-N O-Ring seals. The channel seal prevents blowout during connection and disconnection under pressure to 500 psi. The Buna-N O-Ring seal is a secondary seal eliminating fluid weepage.
Body
Size*		 Max. Operating Pressure Min. Burst Pressure
Connected		 Vacuum
Connected Only		 Rated
Flow		 Air
Inclusion		 Fluid
Loss
bar psi bar psi lpm gpm
3/8" 207 bar 3,000 psi 621 bar 9,000 psi 28 in/Hg. 38 lpm 10 gpm .01 cc max .02 cc max
Plug/Male (Figure 1)
Socket/Female (Figure 2)
FD49 Series | Female NPT, Valved
Part Number Body
Size		 Port
Size		 Coupling
Type		 Thread Type Figure Dimensions
Buna-N Seal A B Hex 1 Hex 2
FD49-1002-06-06 3/8" 3/8" Plug/Male 3/8-18 Female NPT 1 2.62"
(66.5mm)		 - 1.00"
(25.4mm)		 -
FD49-1001-06-06 3/8" 3/8" Socket/Female 3/8-18 Female NPT 2 2.74"
(69.6mm)		 1.20"
(30.5mm)		 1.00"
(25.4mm)		 1.06"
(26.9mm)

FD49-1002-08-06 3/8" 1/2" Plug/Male 1/2-14 Female NPT 1 2.75"
(69.9mm)		 - 1.06"
(26.9mm)		 -
FD49-1001-08-06 3/8" 1/2" Socket/Female 1/2-14 Female NPT 2 2.85"
(72.4mm)		 1.20"
(30.5mm)		 - 1.06"
(26.9mm)
FD49 Series | Female SAE O-Ring Boss, Valved
FD49-1004-08-06 3/8" 3/4" Plug/Male 3/4-16 Female SAE ORB 1 2.75"
(69.9mm)		 - 1.06"
(26.9mm)		 -
FD49-1005-08-06 3/8" 3/4" Socket/Female 3/4-16 Female SAE ORB 2 2.82"
(71.6mm)		 1.20"
(30.5mm)		 - 1.06"
(26.9mm)


Plug/Male (Figure 3)
Socket/Female (Figure 4)
FD49 Series | Male SAE O-Ring Boss, Valved
Part Number Body
Size		 Port
Size		 Coupling
Type		 Thread Type Figure Dimensions
Buna-N Seal A B Hex 1 Hex 2
FD49-1057-06-06 3/8" 9/16" Plug/Male 9/16-18 Male SAE ORB 3 2.99"
(75.9mm)		 - 1.00"
(25.4mm)		 -
FD49-1014-06-06 3/8" 9/16" Socket/Female 9/16-18 Male SAE ORB 4 3.22"
(81.8mm)		 1.20"
(30.5mm)		 1.00"
(25.4mm)		 1.06"
(26.9mm)

FD49-1057-08-06 3/8 " 3/4" Plug/Male 3/4-16 Male SAE ORB 3 2.99"
(75.9mm)		 - 1.00"
(25.4mm)		 -
FD49-1014-08-06 3/8" 3/4" Socket/Female 3/4-16 Male SAE ORB 4 3.28"
(83.3mm)		 1.20"
(30.5mm)		 1.00"
(25.4mm)		 1.06"
(26.9mm)
FD49 Series | Dust Cap/Plug
Part Number Body
Size
FD49-1042-06 3/8"
