FD56-1001-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Complete Plug and Socket Set | Buna-N Seal | Stainless Steel
FD56-1001-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Complete Plug and Socket Set | Buna-N Seal | Stainless Steel
FD56-1001-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Complete Plug and Socket Set | Buna-N Seal | Stainless Steel
FD56-1001-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Complete Plug and Socket Set | Buna-N Seal | Stainless Steel
FD56-1001-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Complete Plug and Socket Set | Buna-N Seal | Stainless Steel

FD56-1001-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Complete Plug and Socket Set | Buna-N Seal | Stainless Steel

$320.92 - $320.92
$320.92
$320.92 - $320.92
$320.92

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPTF

Fluid Transfer and Hydraulic Quick Disconnect Coupling

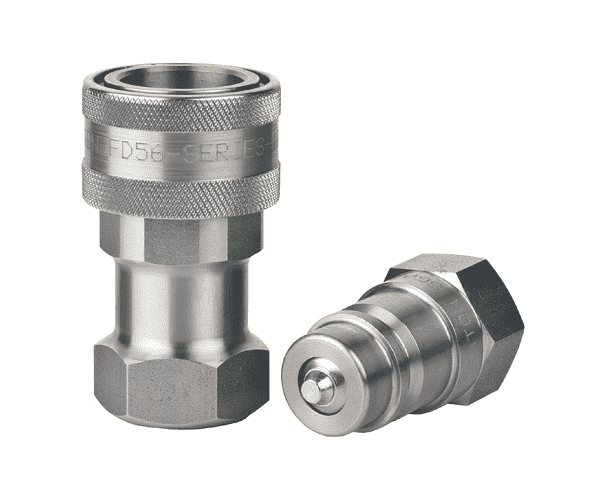

The Danfoss Hansen 5600 Series is a rugged poppet style ball locking quick disconnect coupling.
Specifications for Variant SKU: FD56-1001-12-12 Danfoss
Brand: Hansen
Series: 5600 Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPTF, 3/4in ISO-A QD Interchange
Material(s): 303 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Self-sealing poppet valve provides excellent high and low pressure sealing.
  • Stainless steel construction offers excellent corrosion resistance in tough environments.
Applications & Markets:
  • Hydraulic fluid transfer
  • Agricultural equipment
  • Construction equipment
  • Steel Mills
  • Plant Manufacturing and Processing Equipment
  • Dump, snow plow and maintenance vehicles
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series A.
Materials:
  • Standard Seal Material: Nitrile (NBR)
  • Standard Body Material: 303 Stainless Steel
Body Size Max. Operating Pressure Connected Minimum Burst Pressure Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi lpm gpm cc.max. cc.max.
5/8 207 3,000 621 9,000 45 12 2.8 2.8
3/4 207 3,000 621 9,000 106 28 10 8.2
1 207 3,000 621 9,000 189 50 14.2 14.2
Socket/Female (Figure 1)
Plug/Male (Figure 2)

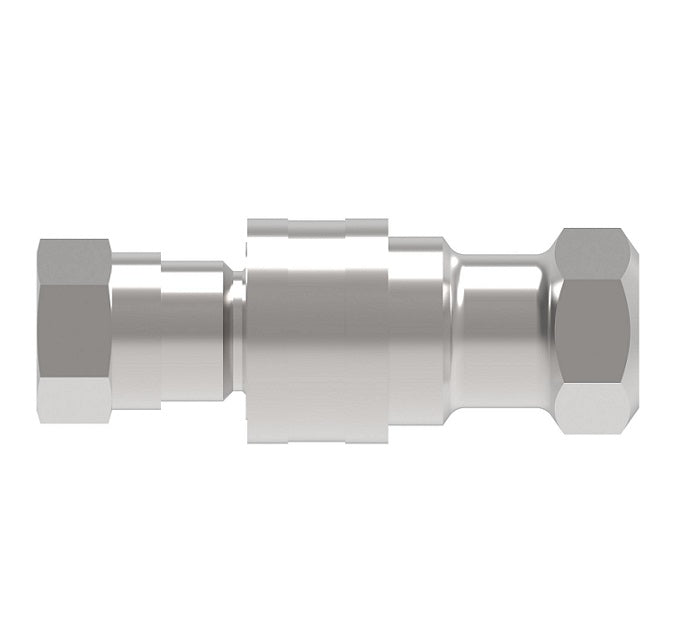

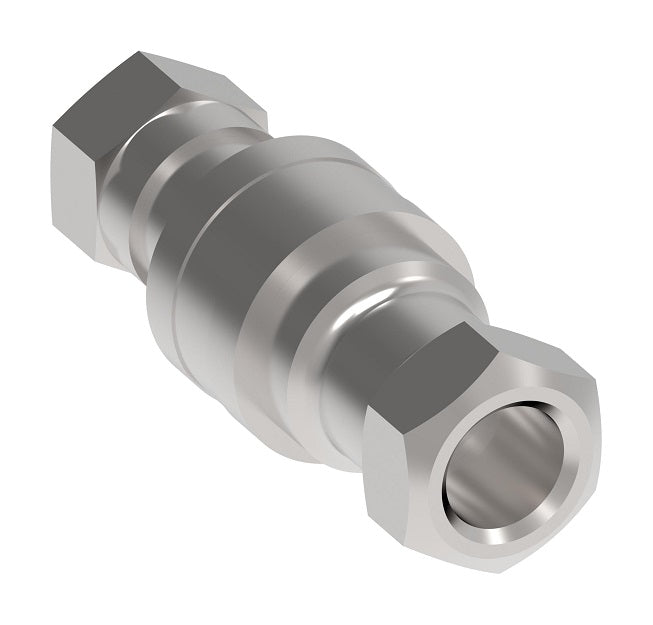

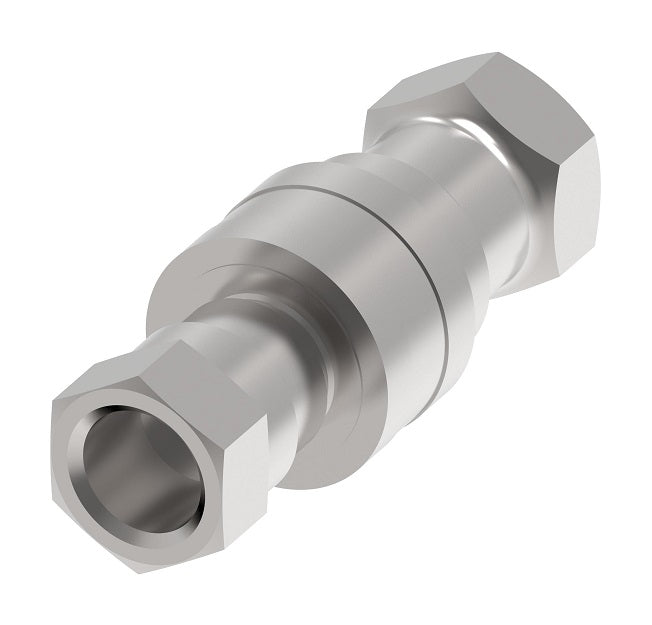

Complete (Figure 3)
Dimensions (Female NPTF)
Buna-N
Part Number		 Coupling
Type		 Body
Size		 Thread Figure Dimensions
A B Hex 1
mm in mm in mm in
560024-8-10 Socket/Female 5/8" 1/2-14 NPTF 1 66.3mm 2.61" 38.1mm 1.5" 30.2mm 1.19"
560049-8-10 Plug/Male 5/8" 1/2-14 NPTF 2 51.3mm 2.02" - - 26.9mm 1.06"
560024-12-12 Socket/Female 3/4" 3/4-14 NPTF 1 82.6mm 3.25" 46.0mm 1.81" 38.1mm 1.50"
560049-12-12 Plug/Male 3/4" 3/4-14 NPTF 2 64.8mm 2.55" - - 35.1mm 1.38"
FD56-1001-12-12 Complete 5/8" 1/2-14 NPTF 3 96.0mm 3.78" - - - -
560024-16-16 Socket/Female 1" 1-11-1/2 NPTF 1 97.0mm 3.82" 53.3mm 2.1" 42.9mm 1.69"
560049-16-16 Plug/Male 1" 1-11-1/2 NPTF 2 78.7mm 3.1" - - 41.1mm 1.62"
FD56-1001-16-16 Complete 1" 1-11-1/2 3 123.4mm 4.86" - - - -
