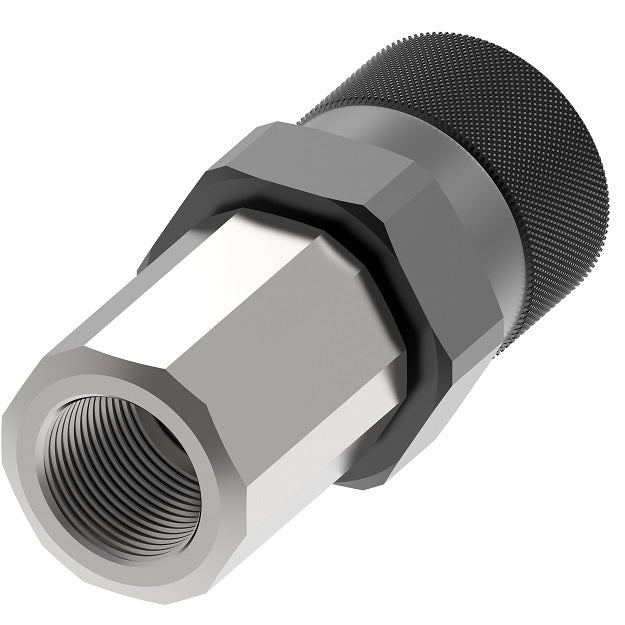

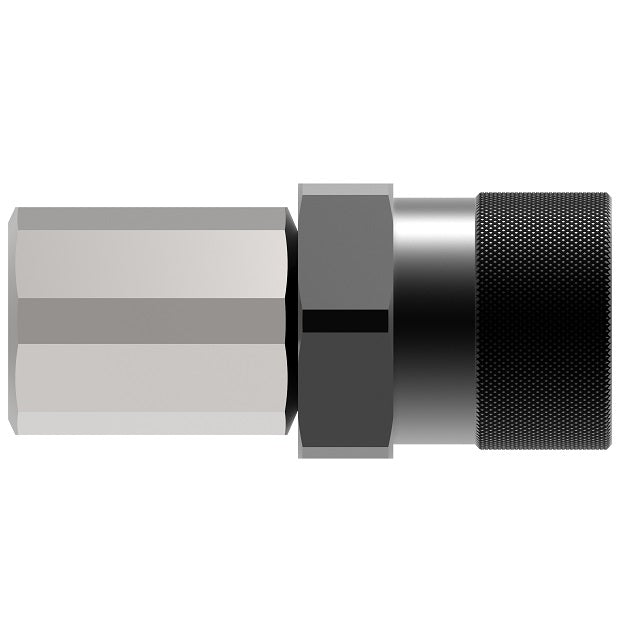

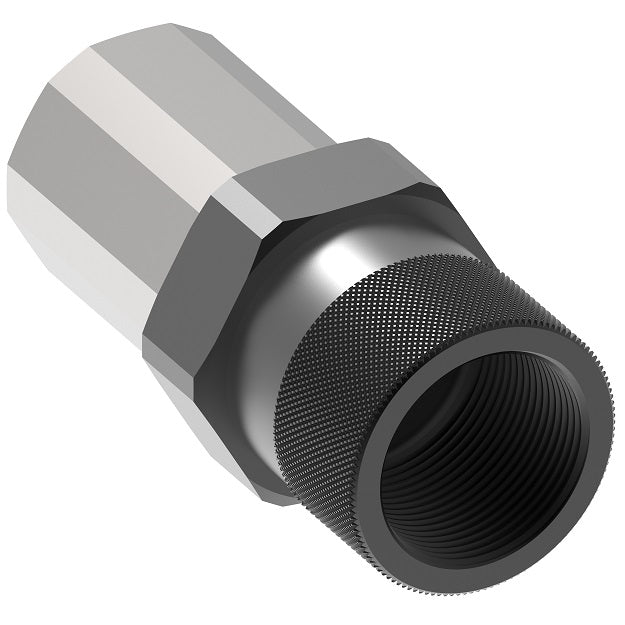

FD96-1001-20-20 Hansen® by Danfoss | Quick Disconnect Coupling | FD96 Series | 1-1/4" Female NPT x 1-1/4" High Pressure Thread to Connect Flush Face | Socket | NBR Seal | Steel

$484.21 - $484.21

$484.21

$484.21 - $484.21

$484.21

Hansen® by Danfoss
FD96 Series | High Pressure Thread to Connect Flush Face

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD96 High Pressure Thread Together Flush Face Series is designed for high pressure and high impulse applications for hydraulic circuits.

The FD96 Series design provides low connect and disconnect force in hydraulic circuits where trapped residual pressure must be addressed.

The flush face design limits contamination and unwanted fluid loss.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FD96-1001-20-20 Danfoss
Brand:	Hansen
Series:	FD96 Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female NPT, 1-1/4in ISO-16028 Flush Face QD Interchange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Thread together design allows connection and disconnection under pressure up to 4,300 psi. Low connection force. Dual flush-face valving with non-spill design. Working pressures up to 8,700 psi.
Applications & Markets:	Hydraulic Fluid Transfer High-impulse Hydraulics Oilfields Mining
Materials:	Standard body material: High resistance carbon steel with zinc trivalent and black oxide plating.

Body Size	Max. Operating Pressure						Min. Burst Pressure						Rated Flow		Fluid Loss	Req. Torque to Connect
Body Size	Connected		Plug Male Half		Socket Female Half		Connected		Plug Male Half		Socket Female Half		Rated Flow		Fluid Loss	Req. Torque to Connect
1/4"	600 bar	8,700 psi	600 bar	8,700 psi	420 bar	6,090 psi	1,500 bar	21,750 psi	1,500 bar	21,750 psi	1,260 bar	18,270 psi	12 lpm	3.2 gpm	.012 cc	29-37 lbs.	40-50 N
3/8"	550bar	7,980 psi	550 bar	7,980 psi	330 bar	4,785 psi	1,400 bar	20,300 psi	1,400 bar	20,300 psi	1,000 bar	14,500 psi	23 lpm	6.1 gpm	.040 cc	37-44 lbs.	50-60 N
1/2"	550 bar	7,980 psi	550 bar	7,980 psi	330 bar	4,785 psi	1,400 bar	20,300 psi	1,400 bar	20,300 psi	1,000 bar	14,500 psi	45 lpm	11.9 gpm	.025 cc	48-55 lbs.	65-75 N
3/4"	550bar	7,980 psi	550 bar	7,980 psi	330 bar	4,785 psi	1,400 bar	20,300 psi	1,400 bar	20,300 psi	1,000 bar	14,500 psi	74 lpm	19.6 gpm	.033 cc	52-59 lbs.	70-80 N
1"	500bar	7,250 psi	500 bar	7,250 psi	330 bar	4,785 psi	1,250 bar	18,125 psi	1,250 bar	18,125 psi	1,000 bar	14,500 psi	100 lpm	26.5 gpm	.018 cc	66-81 lbs.	90-110 N
1-1/4"	470 bar	6,800 psi	470 bar	6,800 psi	300 bar	4,350 psi	1,200 bar	17,400 psi	1,200 bar	17,400 psi	800 bar	11,600 psi	189 lpm	50.1 gpm	.060 cc	92-107 lbs.	125-145 N
1-1/2"	400 bar	5,800 psi	400 bar	5,800 psi	270 bar	3,915 psi	1,700 bar	15,950 psi	1,100 bar	15,950 psi	800 bar	11,600 psi	288 lpm	76.3 gpm	.200 cc	114-129 lbs.	155-175 N
2"	350 bar	5,080 psi	350 bar	5,080 psi	270 bar	3,915 psi	1,100 bar	15,950 psi	1,100 bar	15,950 psi	800 bar	11,600 psi	379 lpm	100.4 gpm	.350 cc	236-258 lbs.	320-355 N


Plug/Male (Figure 1)				Socket/Female (Figure 2)				Connected Length
FD96 Series \| Female NPT
Part Number	Body Size	Port Size	Coupling Type	Thread	Type	Figure	Dimensions				Dust Cap/Plug Part Number
	Body Size	Port Size	Coupling Type	Thread	Type	Figure	A	B	Hex 1	Plug & Socket Connected Length L
FD96-1001-06-06	3/8"	3/8"	Socket/Female	3/8-18	Female NPT	2	2.59" (65.8mm)	41.8" (41.8mm)	1.18" (30mm)	5.16" (131.0mm)	FD96-1009-06
FD96-1002-06-06	3/8"	3/8"	Plug/Male	3/8-18	Female NPT	1	3.25" (82.5mm)	1.49" (37.8mm)	1.06" (27mm)	5.16" (131.0mm)	FD96-1010-06

FD96-1001-08-06	3/8"	1/2"	Socket/Female	1/2-14	Female NPT	2	2.79" (70.8mm)	1.65" (41.8mm)	1.18" (30mm)	5.16" (131.0mm)	FD96-1009-06
FD96-1002-08-06	3/8"	1/2"	Plug/Male	1/2-14	Female NPT	1	3.35" (85.0mm)	1.49" (37.8mm)	1.06" (27mm)	5.16" (131.0mm)	FD96-1010-06

FD96-1001-08-08	1/2"	1/2"	Socket/Female	1/2-14	Female NPT	2	3.06" (77.8mm)	1.96" (49.8mm)	1.42" (36mm)	6.10" (155.0mm)	FD96-1009-08
FD96-1002-08-08	1/2"	1/2"	Plug/Male	1/2-14	Female NPT	1	3.74" (95.0mm)	1.80" (45.8mm)	1.42" (36mm)	6.10" (155.0mm)	FD96-1010-08

FD96-1001-12-08	1/2"	3/4"	Socket/Female	3/4-14	Female NPT	2	3.06" (84.8mm)	1.96" (49.8mm)	1.42" (36mm)	6.30" (160.0mm)	FD96-1009-08
FD96-1002-12-08	1/2"	3/4"	Plug/Male	3/4-14	Female NPT	1	3.83" (97.4mm)	1.80" (45.8mm)	1.42" (36mm)	6.30" (160.0mm)	FD96-1010-08

FD96-1001-12-12	3/4"	3/4"	Socket/Female	3/4-14	Female NPT	2	3.34" (84.9mm)	2.12" (53.8mm)	1.61" (41mm)	6.50" (165.0mm)	FD96-1009-12
FD96-1002-12-12	3/4"	3/4"	Plug/Male	3/4-14	Female NPT	1	3.90" (99.0mm)	1.96" (49.8mm)	1.42" (36mm)	6.50" (165.0mm)	FD96-1010-12

FD96-1001-12-16	1"	3/4"	Socket/Female	3/4-14	Female NPT	2	3.81" (96.7mm)	2.31" (58.8mm)	1.81" (46mm)	-	FD96-1009-16
FD96-1002-12-16	1"	3/4"	Plug/Male	3/4-14	Female NPT	1	4.47" (113.6mm)	2.16" (54.8mm)	1.81" (46mm)	-	FD96-1010-16

FD96-1001-16-16	1"	1"	Socket/Female	1-11-1/2	Female NPT	2	3.93" (99.7mm)	2.31" (58.8mm)	1.81" (46mm)	7.50" (190.4mm)	FD96-1009-16
FD96-1002-16-16	1"	1"	Plug/Male	1-11-1/2	Female NPT	1	4.47" (113.6mm)	2.16" (54.8mm)	1.81" (46mm)	7.50" (190.4mm)	FD96-1010-16

FD96-1001-20-20	1-1/4"	1-1/4"	Socket/Female	1-1/4-11-1/2	Female NPT	2	4.20" (106.8mm)	2.75" (69.8mm)	2.17" (55mm)	-	FD96-1009-20
FD96-1002-20-20	1-1/4"	1-1/4"	Plug/Male	1-1/4-11-1/2	Female NPT	1	4.86" (123.4mm)	2.54" (64.5mm)	2.17" (55mm)	-	FD96-1010-20

FD96-1001-24-24	1-1/2"	1-1/2"	Socket/Female	1-1/2-11-1/2	Female NPT	2	5.26" (133.5mm)	3.62" (92.0mm)	2.56" (65mm)	10.08" (256.0mm)	FD96-1009-24
FD96-1002-24-24	1-1/2"	1-1/2"	Plug/Male	1-1/2-11-1/2	Female NPT	1	5.91" (150.0mm)	3.54" (89.8mm)	2.56" (65mm)	10.08" (256.0mm)	FD96-1010-24

FD96-1001-32-32	2"	2"	Socket/Female	2-11-1/2	Female NPT	2	8.85" (224.8mm)	7.87" (200.0mm)	3.54" (90mm)	14.31" (363.5mm)	FD96-1009-32
FD96-1002-32-32	2"	2"	Plug/Male	2-11-1/2	Female NPT	1	8.60" (218.4mm)	5.71" (145.0mm)	3.54" (90mm)	14.31" (363.5mm)	FD96-1010-32
