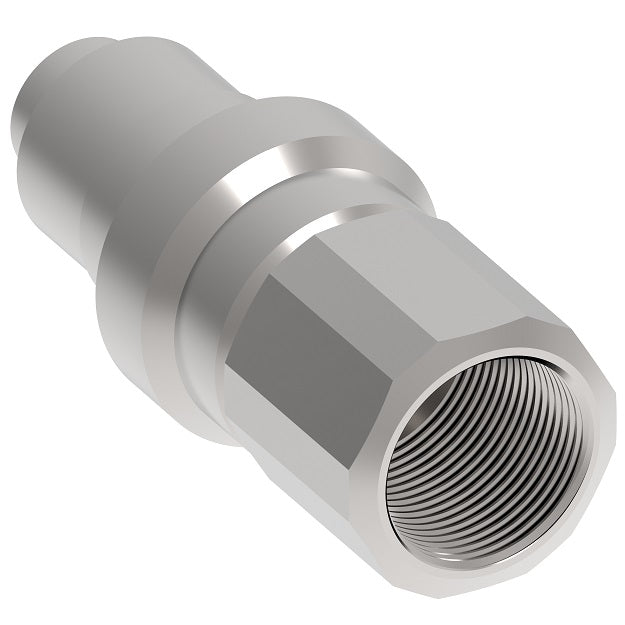

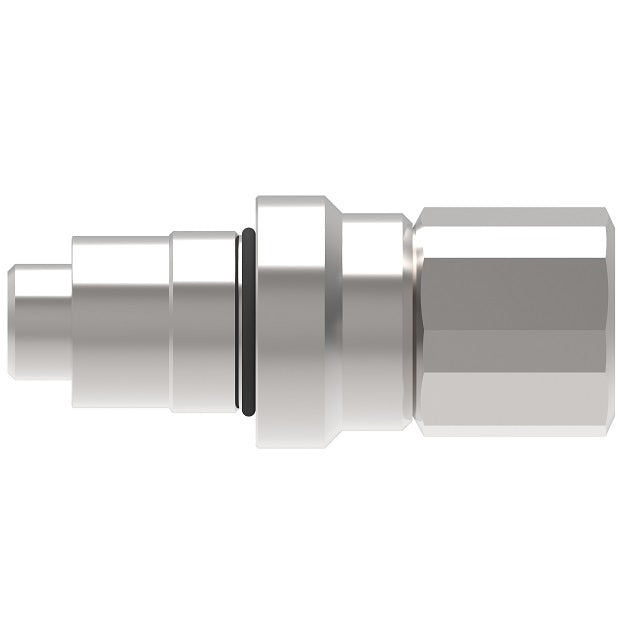

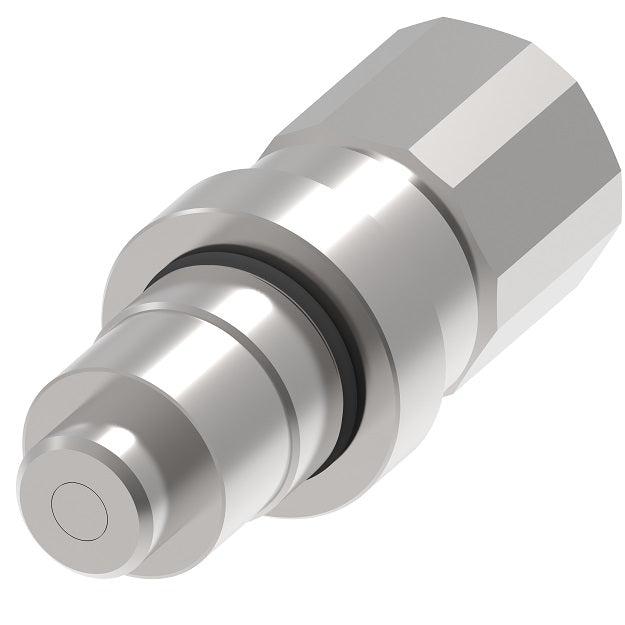

FD96-1002-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD96 Series | 1/2" Female NPT x 3/8" High Pressure Thread to Connect Flush Face | Plug | NBR Seal | Steel

FD96-1002-08-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD96 Series | 1/2" Female NPT x 3/8" High Pressure Thread to Connect Flush Face | Plug | NBR Seal | Steel

$221.46 - $221.46
$221.46
$221.46 - $221.46
$221.46

Hansen® by Danfoss
FD96 Series | High Pressure Thread to Connect Flush Face

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD96 High Pressure Thread Together Flush Face Series is designed for high pressure and high impulse applications for hydraulic circuits.

The FD96 Series design provides low connect and disconnect force in hydraulic circuits where trapped residual pressure must be addressed.

The flush face design limits contamination and unwanted fluid loss.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FD96-1002-08-06 Danfoss
Brand: Hansen
Series: FD96 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 3/8in ISO-16028 Flush Face QD Interchange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Thread together design allows connection and disconnection under pressure up to 4,300 psi.
  • Low connection force.
  • Dual flush-face valving with non-spill design.
  • Working pressures up to 8,700 psi.
Applications & Markets:
  • Hydraulic Fluid Transfer
  • High-impulse Hydraulics
  • Oilfields
  • Mining
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent and black oxide plating.
Body
Size		 Max. Operating Pressure Min. Burst Pressure Rated Flow Fluid
Loss		 Req. Torque
to Connect
Connected Plug
Male Half		 Socket
Female Half		 Connected Plug
Male Half		 Socket
Female Half
1/4" 600 bar 8,700 psi 600 bar 8,700 psi 420 bar 6,090 psi 1,500 bar 21,750 psi 1,500 bar 21,750 psi 1,260 bar 18,270 psi 12 lpm 3.2 gpm .012 cc 29-37 lbs. 40-50 N
3/8" 550bar 7,980 psi 550 bar 7,980 psi 330 bar 4,785 psi 1,400 bar 20,300 psi 1,400 bar 20,300 psi 1,000 bar 14,500 psi 23 lpm 6.1 gpm .040 cc 37-44 lbs. 50-60 N
1/2" 550 bar 7,980 psi 550 bar 7,980 psi 330 bar 4,785 psi 1,400 bar 20,300 psi 1,400 bar 20,300 psi 1,000 bar 14,500 psi 45 lpm 11.9 gpm .025 cc 48-55 lbs. 65-75 N
3/4" 550bar 7,980 psi 550 bar 7,980 psi 330 bar 4,785 psi 1,400 bar 20,300 psi 1,400 bar 20,300 psi 1,000 bar 14,500 psi 74 lpm 19.6 gpm .033 cc 52-59 lbs. 70-80 N
1" 500bar 7,250 psi 500 bar 7,250 psi 330 bar 4,785 psi 1,250 bar 18,125 psi 1,250 bar 18,125 psi 1,000 bar 14,500 psi 100 lpm 26.5 gpm .018 cc 66-81 lbs. 90-110 N
1-1/4" 470 bar 6,800 psi 470 bar 6,800 psi 300 bar 4,350 psi 1,200 bar 17,400 psi 1,200 bar 17,400 psi 800 bar 11,600 psi 189 lpm 50.1 gpm .060 cc 92-107 lbs. 125-145 N
1-1/2" 400 bar 5,800 psi 400 bar 5,800 psi 270 bar 3,915 psi 1,700 bar 15,950 psi 1,100 bar 15,950 psi 800 bar 11,600 psi 288 lpm 76.3 gpm .200 cc 114-129 lbs. 155-175 N
2" 350 bar 5,080 psi 350 bar 5,080 psi 270 bar 3,915 psi 1,100 bar 15,950 psi 1,100 bar 15,950 psi 800 bar 11,600 psi 379 lpm 100.4 gpm .350 cc 236-258 lbs. 320-355 N

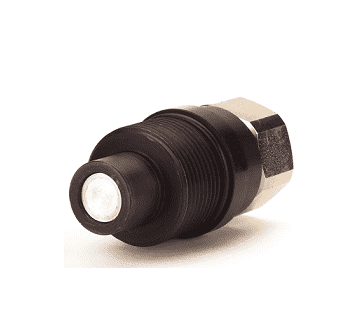

Plug/Male (Figure 1)
Socket/Female (Figure 2)
Connected Length
FD96 Series | Female NPT
Part Number Body
Size		 Port
Size		 Coupling
Type		 Thread Type Figure Dimensions Dust Cap/Plug
Part Number
  A B Hex 1 Plug & Socket
Connected Length
L
FD96-1001-06-06 3/8" 3/8" Socket/Female 3/8-18 Female NPT 2 2.59"
(65.8mm)		 41.8"
(41.8mm)		 1.18"
(30mm)		 5.16"
(131.0mm)		 FD96-1009-06
FD96-1002-06-06 3/8" 3/8" Plug/Male 3/8-18 Female NPT 1 3.25"
(82.5mm)		 1.49"
(37.8mm)		 1.06"
(27mm)		 5.16"
(131.0mm)		 FD96-1010-06

FD96-1001-08-06 3/8" 1/2" Socket/Female 1/2-14 Female NPT 2 2.79"
(70.8mm)		 1.65"
(41.8mm)		 1.18"
(30mm)		 5.16"
(131.0mm)		 FD96-1009-06
FD96-1002-08-06 3/8" 1/2" Plug/Male 1/2-14 Female NPT 1 3.35"
(85.0mm)		 1.49"
(37.8mm)		 1.06"
(27mm)		 5.16"
(131.0mm)		 FD96-1010-06

FD96-1001-08-08 1/2" 1/2" Socket/Female 1/2-14 Female NPT 2 3.06"
(77.8mm)		 1.96"
(49.8mm)		 1.42"
(36mm)		 6.10"
(155.0mm)		 FD96-1009-08
FD96-1002-08-08 1/2" 1/2" Plug/Male 1/2-14 Female NPT 1 3.74"
(95.0mm)		 1.80"
(45.8mm)		 1.42"
(36mm)		 6.10"
(155.0mm)		 FD96-1010-08

FD96-1001-12-08 1/2" 3/4" Socket/Female 3/4-14 Female NPT 2 3.06"
(84.8mm)		 1.96"
(49.8mm)		 1.42"
(36mm)		 6.30"
(160.0mm)		 FD96-1009-08
FD96-1002-12-08 1/2" 3/4" Plug/Male 3/4-14 Female NPT 1 3.83"
(97.4mm)		 1.80"
(45.8mm)		 1.42"
(36mm)		 6.30"
(160.0mm)		 FD96-1010-08

FD96-1001-12-12 3/4" 3/4" Socket/Female 3/4-14 Female NPT 2 3.34"
(84.9mm)		 2.12"
(53.8mm)		 1.61"
(41mm)		 6.50"
(165.0mm)		 FD96-1009-12
FD96-1002-12-12 3/4" 3/4" Plug/Male 3/4-14 Female NPT 1 3.90"
(99.0mm)		 1.96"
(49.8mm)		 1.42"
(36mm)		 6.50"
(165.0mm)		 FD96-1010-12

FD96-1001-12-16 1" 3/4" Socket/Female 3/4-14 Female NPT 2 3.81"
(96.7mm)		 2.31"
(58.8mm)		 1.81"
(46mm)		 - FD96-1009-16
FD96-1002-12-16 1" 3/4" Plug/Male 3/4-14 Female NPT 1 4.47"
(113.6mm)		 2.16"
(54.8mm)		 1.81"
(46mm)		 - FD96-1010-16

FD96-1001-16-16 1" 1" Socket/Female 1-11-1/2 Female NPT 2 3.93"
(99.7mm)		 2.31"
(58.8mm)		 1.81"
(46mm)		 7.50"
(190.4mm)		 FD96-1009-16
FD96-1002-16-16 1" 1" Plug/Male 1-11-1/2 Female NPT 1 4.47"
(113.6mm)		 2.16"
(54.8mm)		 1.81"
(46mm)		 7.50"
(190.4mm)		 FD96-1010-16

FD96-1001-20-20 1-1/4" 1-1/4" Socket/Female 1-1/4-11-1/2 Female NPT 2 4.20"
(106.8mm)		 2.75"
(69.8mm)		 2.17"
(55mm)		 - FD96-1009-20
FD96-1002-20-20 1-1/4" 1-1/4" Plug/Male 1-1/4-11-1/2 Female NPT 1 4.86"
(123.4mm)		 2.54"
(64.5mm)		 2.17"
(55mm)		 - FD96-1010-20

FD96-1001-24-24 1-1/2" 1-1/2" Socket/Female 1-1/2-11-1/2 Female NPT 2 5.26"
(133.5mm)		 3.62"
(92.0mm)		 2.56"
(65mm)		 10.08"
(256.0mm)		 FD96-1009-24
FD96-1002-24-24 1-1/2" 1-1/2" Plug/Male 1-1/2-11-1/2 Female NPT 1 5.91"
(150.0mm)		 3.54"
(89.8mm)		 2.56"
(65mm)		 10.08"
(256.0mm)		 FD96-1010-24

FD96-1001-32-32 2" 2" Socket/Female 2-11-1/2 Female NPT 2 8.85"
(224.8mm)		 7.87"
(200.0mm)		 3.54"
(90mm)		 14.31"
(363.5mm)		 FD96-1009-32
FD96-1002-32-32 2" 2" Plug/Male 2-11-1/2 Female NPT 1 8.60"
(218.4mm)		 5.71"
(145.0mm)		 3.54"
(90mm)		 14.31"
(363.5mm)		 FD96-1010-32
