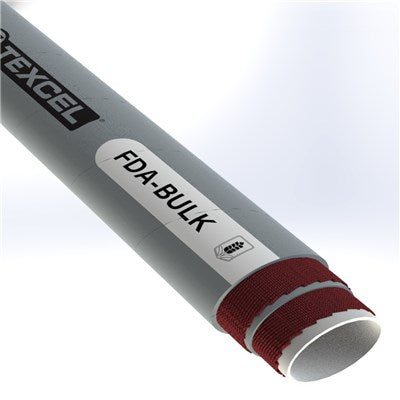

FDABULK-4-4-100 by Texcel | FDA-BULK Series | Food Grade Dry Material Discharge Hose | 4" Hose ID | 150 PSI | Gray

$39.41 - $3,283.78

$39.41

$28.15

$28.15 - $2,345.56

$28.15

Texcel
FDA-BULK Series | Food Grade Dry Material Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: FDABULK-4-4-100 Texcel \| 100 \|
Series:	FDA-BULK Series
Hose Color(s):	Gray
Internal Diameter:	4in
Outer Diameter:	3.59in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR/Nitrile Blend

Technical Data:
Description:	Soft Wall hose for dry and abrasive food stuffs such as grains, rice, sugar, flour and animal foods. Meets FDA title 21, part.177.2600 for dry foods, BfR, ADI free, phthalate free, D.M. 21/03/73, CE 1935/2004	Tube:	White, smooth NR rubber compound, food quality odorless and taste free
Cover:	Gray, smooth, cloth impressions NR/SBR rubber compound, resistant to abrasion and weather	Reinforcement:	High strength synthetic plies, with stranded copper wire for hose grounding
Safety Factor:	3:1	Temperature:	-40°F to +176°F Sterilization at 230°F for 30 minutes
Branding:	TEXCEL® FDA-BULK - FOOD GRADE DRY MATERIAL DISCHARGE HOSE 1/8 TUBE 150 PSI W.P.	Features:	FDA and USDA compliant

Part Number	Hose ID	Tube Gauge	Hose OD	Working Pressure (psi)	Number of Plies	Lbs./Ft.
FDABULK-4-4-100	4"	1/8"	4-26/64"	150 psi	2	1.63 lbs
