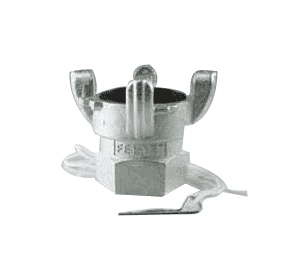

FE200 by Jason Industrial | Universal Air Coupling | 4 Lug | 2" Female NPT End | Iron

FE200 by Jason Industrial | Universal Air Coupling | 4 Lug | 2" Female NPT End | Iron

Save $0.13 Save $0.13
$14.12
$14.12 - $14.12
$14.12
$13.99
$13.99 - $13.99
$13.99

Jason Industrial Inc. Couplings & Accessories - Universal Air Coupling - Female NPT End - Iron
Specifications for Variant SKU: FE200 Jason
Shape (Orientation): Straight
Ends Configuration: 4-Lug Chicago, 2in Female NPT
Material(s): Iron
Overview:
  • Used to connect air lines from compressors or other air source to all types of pneumatic tools and equipment. All 2 lug head connections are of one size for easy interchange. Hose shank or threaded end is coupling size. Male and Female threads are NPT. Malleable iron plated. (European style universals available special order.)
Applications:
  • Universal crowfoot couplings are recommended to be used in the transfer of air and or water. The application should be in an open system where the air or water is in motion (dynamic) and not in a closed pressurized (static) condition. This dynamic application involves continuous flow, therefore, back pressure would be relieved by the very nature of the application. The applicable system should contain pressure relief valves to relieve any excess pressure. Safety clips and safety cables should be installed on either side of the coupling connection.
Features:
  • The rated, maximum working pressure of Universal Crowfoot Air Hose Couplings is 150 psi (at ambient temperature [70 deg. F]) for all parts: HE, ME, FE.
Other Components:
Safety Warnings:
  • WARNING: Universal Air Hose Couplings should NEVER be used for steam service.
  • Please do not mix Jason Industrial couplings with other products.
Part Number Hose End Size
FE025 1/4"
FE038 3/8"
FE050 1/2"
FE075 3/4"
FE100 1"
FE100 1-1/4"
FE100 1-1/2"
FE100 2"
UG2 Washer for 2 Lug Universal Couplings
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
