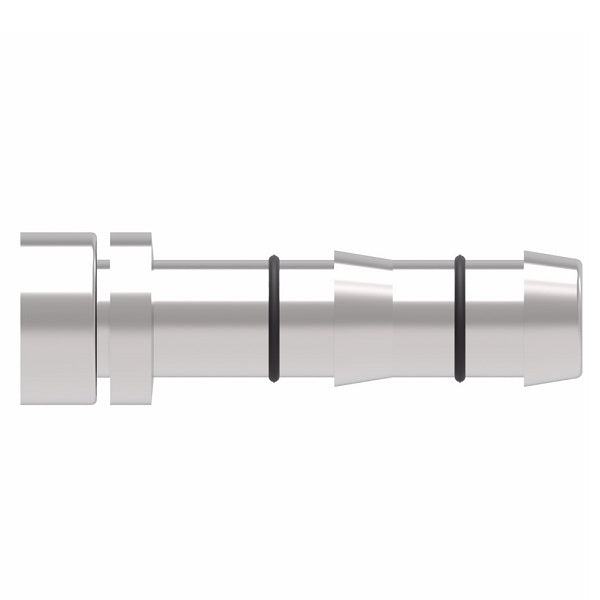

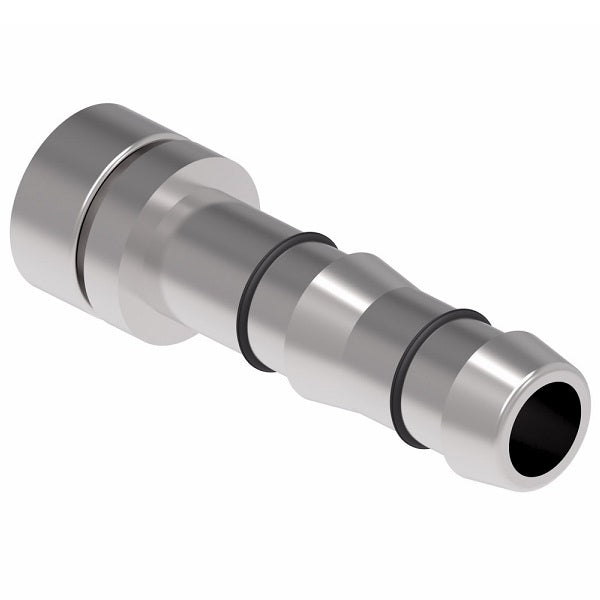

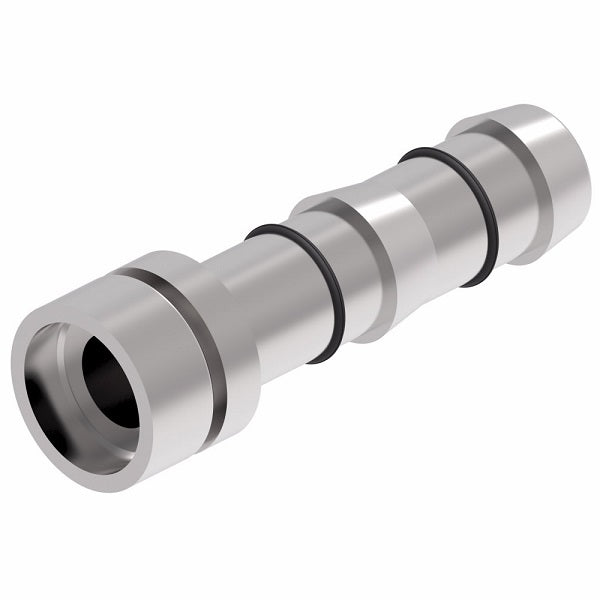

FF12262-1616 E-Z Clip System by Danfoss | Lifesaver Braze Nipple | A/C Refrigeration Fitting | -16 Hose Size | Steel
FF12262-1616 E-Z Clip System by Danfoss | Lifesaver Braze Nipple | A/C Refrigeration Fitting | -16 Hose Size | Steel
FF12262-1616 E-Z Clip System by Danfoss | Lifesaver Braze Nipple | A/C Refrigeration Fitting | -16 Hose Size | Steel
FF12262-1616 E-Z Clip System by Danfoss | Lifesaver Braze Nipple | A/C Refrigeration Fitting | -16 Hose Size | Steel

FF12262-1616 E-Z Clip System by Danfoss | Lifesaver Braze Nipple | A/C Refrigeration Fitting | -16 Hose Size | Steel

$25.07 - $25.07
$25.07
$25.07 - $25.07
$25.07

Danfoss A/C & Refrigeration
E-Z Clip System - Lifesaver Braze Nipple - Straight

Silver Braze Ring Not Included. Clips & Cages Sold Separately.

O-Rings Packaged Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FF12262-1616 Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Braze End
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Brass
Part Number		 Hose Size A Ref. Clip & Cage Kit
(Required)		 Silver Braze Ring
(Required)
FF12262-0606 - -06 2.01" FF14171 FF9075-06
FF12262-0608 - -08 2.02" FF14172 FF9075-06
FF12262-0808 - -08 2.02" FF14172 FF9075-74
FF12262-0810 FF12262-0810B -10 2.03" FF14173 FF9075-74
FF12262-1010 - -10 2.03" FF14173 FF9075-08
FF12262-1012 - -12 2.06" FF14174 FF9075-08
FF12262-1212 - -12 2.21" FF14174 FF9075-09
FF12262-1016 - -16 2.21" FF14401 FF9075-08
FF12262-1216 - -16 2.21" FF14401 FF9075-09
FF12262-1616 - -16 2.21" FF14401 FF9075-86
