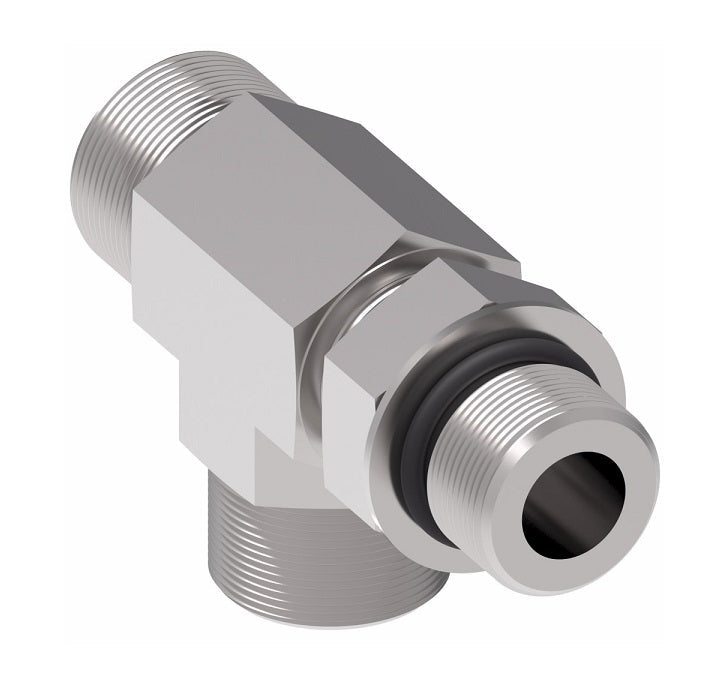

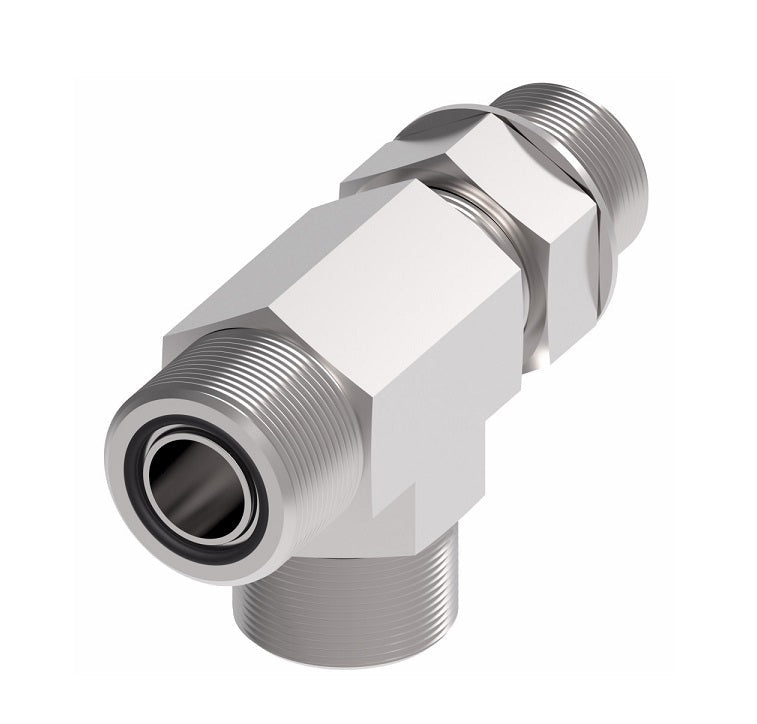

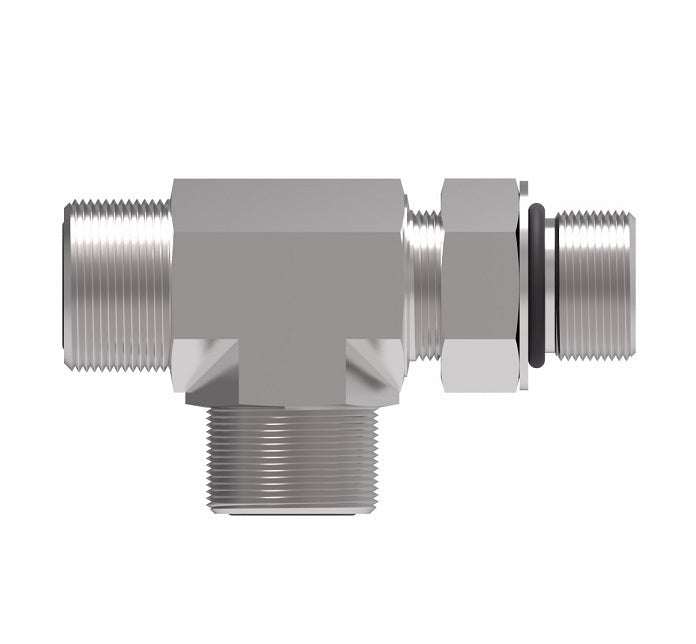

FF1865T1212S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel
FF1865T1212S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel
FF1865T1212S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel
FF1865T1212S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

FF1865T1212S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

$22.68 - $22.68
$22.68
$22.68 - $22.68
$22.68

Aeroquip® by Danfoss
ORS/ORS/SAE O-Ring Boss (adj.) Run Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male SAE O-Ring Boss
Tee

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1865T1212S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520428
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 Thread T3 A B C
FF1865T0404S 0.25" 9/16-18 9/16-18 7/16-20 1.29" 0.85" 0.85"
FF1865T0406S 0.25" 9/16-18 9/16-18 9/16-18 1.45" 0.92" 0.92"
FF1865T0604S 0.38" 11/16-16 11/16-16 7/16-20 1.37" 1.17" 0.98"
FF1865T0606S 0.38" 11/16-16 11/16-16 9/16-18 1.45" 0.98" 0.98"
FF1865T0806S 0.50" 13/16-16 13/16-16 9/16-18 1.44" 1.10" 1.10"
FF1865T0808S 0.50" 13/16-16 13/16-16 3/4-16 1.60" 1.10" 1.10"
FF1865T0812S 0.50" 13/16-16 13/16-16 1-1/16-12 2.17" 1.32" 1.32"
FF1865T1010S 0.63" 1-14 1-14 7/8-14 1.97" 1.31" 1.31"
FF1865T1012S 0.63" 1-14 1-14 1-1/16-12 2.17" 1.41" 1.41"
FF1865T1212S 0.75" 1-3/16-12 1-3/16-12 1-1/16-12 2.17" 1.47" 1.47"
FF1865T1220S 0.75" 1-3/16-12 1-3/16-12 1-5/8-12 2.45" 1.74" 1.74"
FF1865T1616S 1.00" 1-7/16-12 1-7/16-12 1-5/16-12 2.35" 1.64" 1.64"
FF1865T2020S 1.25" 1-11/16-12 1-11/16-12 1-5/8-12 2.45" 1.76" 1.76"
FF1865T2424S 1.50" 2-12 2-12 1-7/8-12 2.59" 1.92" 1.92"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
