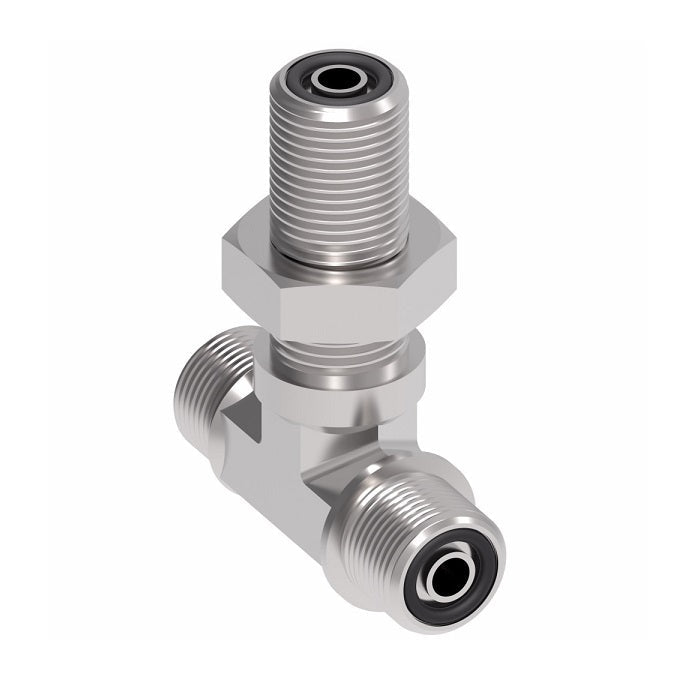

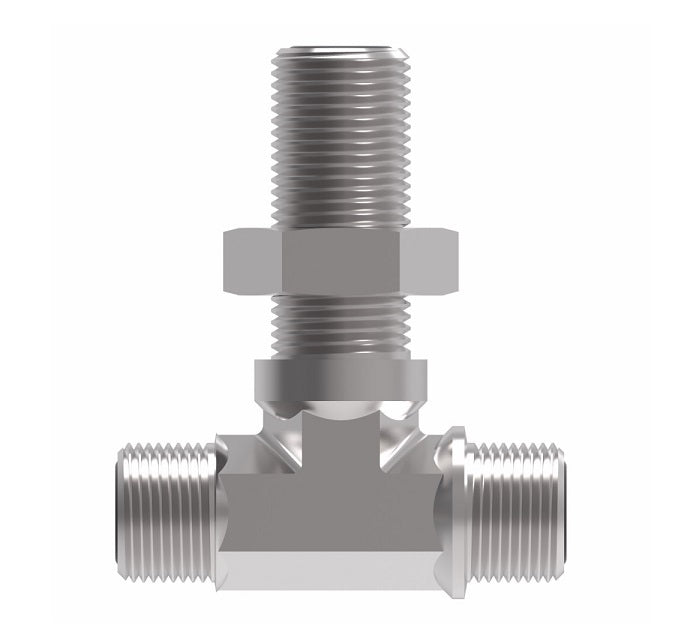

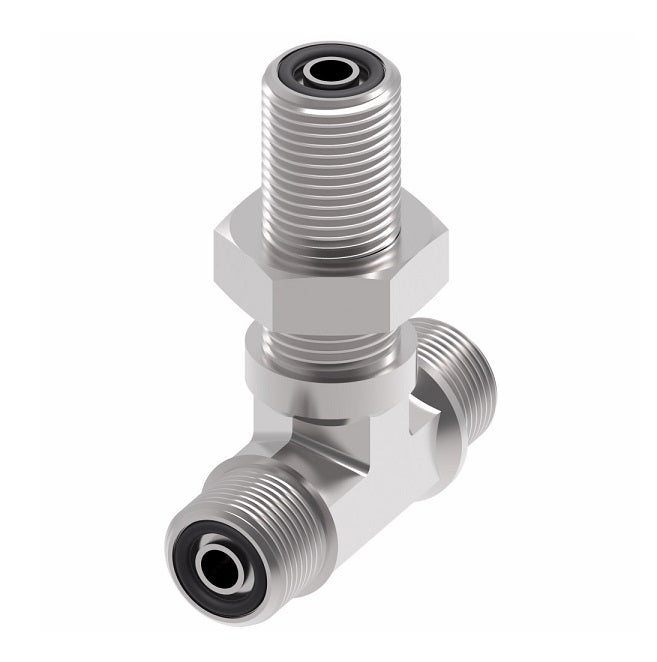

FF2033T1212S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Bulkhead Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

FF2033T1212S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Bulkhead Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

$52.34 - $52.34
$52.34
$52.34 - $52.34
$52.34

Aeroquip® by Danfoss
ORS Male/ORS Male/ORS Male Bulkhead Branch Tee Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male O-Ring Face Seal

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2033T1212S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520959
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 Thread T3 A B
FF2033T0606S 0.38" 11/16-16 11/16-16 11/16-16 1.01" 2.05"
FF2033T0808S 0.50" 13/16-16 13/16-16 13/16-16 1.13" 2.18"
FF2033T1212S 0.75" 1 3/16-12 1 3/16-12 1 3/16-12 1.60" 2.65"
FF2033T1616S 1.00" 1-7/16-12 1-7/16-12 1-7/16-12 1.67" 2.80"
