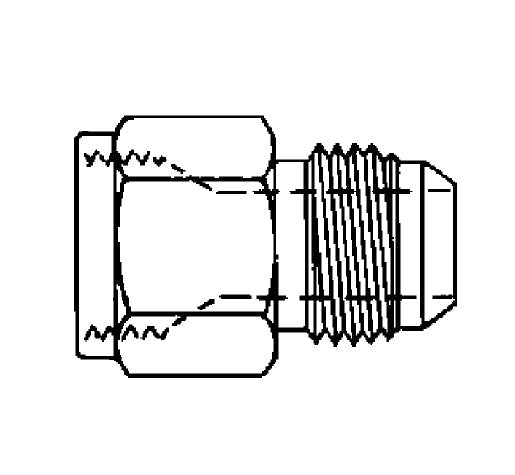

FF2593-0404S Aeroquip by Danfoss | Female Cone Seat JIS 30°/Male JIC 37° Adapter | -04 Female 30° JIS x -04 Male 37° JIC Flare | Steel

FF2593-0404S Aeroquip by Danfoss | Female Cone Seat JIS 30°/Male JIC 37° Adapter | -04 Female 30° JIS x -04 Male 37° JIC Flare | Steel

$23.31 - $23.31
$23.31
$23.31 - $23.31
$23.31

Aeroquip® by Danfoss
Female Cone Seat JIS 30°/Male JIC 37° Adapter
Female 30° JIS x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2593-0404S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female JIS, 1/4in Male JIC
Material(s): Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
FF2593-0404S 0.25" G1/4-19 7/16-20 1.19"
FF2593-0606S 0.38" G3/8-19 9/16-18 1.21"
FF2593-0808S 0.50" G1/2-14 3/4-16 1.41"
FF2593-1212S 0.75" G3/4-14 1-1/16-12 1.70"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
