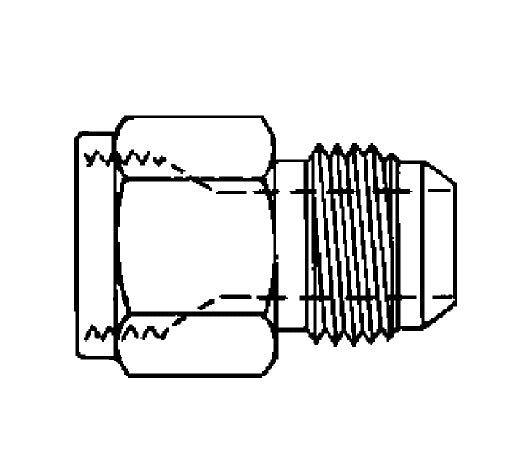

FF2593-1212S Aeroquip by Danfoss | Female Cone Seat JIS 30°/Male JIC 37° Adapter | -12 Female 30° JIS x -12 Male 37° JIC Flare | Steel

FF2593-1212S Aeroquip by Danfoss | Female Cone Seat JIS 30°/Male JIC 37° Adapter | -12 Female 30° JIS x -12 Male 37° JIC Flare | Steel

$28.63 - $28.63
$28.63
$28.63 - $28.63
$28.63

Aeroquip® by Danfoss
Female Cone Seat JIS 30°/Male JIC 37° Adapter
Female 30° JIS x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2593-1212S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female JIS, 3/4in Male JIC
Material(s): Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
FF2593-0404S 0.25" G1/4-19 7/16-20 1.19"
FF2593-0606S 0.38" G3/8-19 9/16-18 1.21"
FF2593-0808S 0.50" G1/2-14 3/4-16 1.41"
FF2593-1212S 0.75" G3/4-14 1-1/16-12 1.70"
