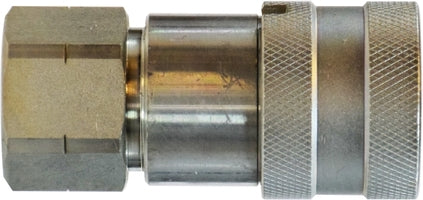

FF34F (FF-34-F) Midland Hydraulic Quick Disconnect - Flush Face ISO Female Pipe Coupler - 3/4" Body Size - 3/4" Female NPT - Steel

FF34F by Midland | Hydraulic Quick Disconnect | Flush Face ISO Female Pipe Coupler | 3/4" Body Size | 3/4" Female NPT | Steel

Save $8.56

$77.01

$77.01 - $77.01

$77.01

$68.45

$68.45 - $68.45

$68.45

Midland Industries
Hydraulic Quick Disconnects: Flush Face ISO (ISO 16028) - Steel

Inventory @ Manufacturers Warehouse: 499 Units

Quantity

Specifications for Variant SKU: FF34F Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male ISO-16028 Flush Face QD Interchange, 3/4in Female NPT
Material(s):	Steel
Seal Material(s):	Nitrile/PTFE

Features:
Steel construction, zinc plated trivalent finish. Hardened Nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock. This Anti-Blowout Nitrile/ PTFE bonded seal is designed to prevent blow out or damage during servere service conditions. Durable ball-locking mechanism assures reliable connection everytime. Temp Range -65° to +250°

Interchanges:
FF Series	HTMC / HTMN	74C / 74N

Flush Face ISO Female Pipe Coupler					Flush Face ISO Female Pipe Plug

Part Number	Body Size	Female NPT	Max PSI	Burst Pressure	Part Number	Body Size	Female NPT	Max PSI	Burst Pressure
FF14F (FF-14-F)	1/4"	1/4"	5,000 PSI	18,270 PSI	FF14M (FF-14-M)	1/4"	1/4"	5,000 PSI	18,270 PSI
FF38F (FF-38-F)	3/8"	3/8"	4,000 PSI	18,270 PSI	FF38M (FF-38-M)	3/8"	3/8"	4,000 PSI	18,270 PSI
FF12F (FF-12-F)	1/2"	1/2"	4,000 PSI	16,500 PSI	FF12M (FF-12-M)	1/2"	1/2"	4,000 PSI	16,500 PSI
FF3812F (FF-3812-F)	3/8"	1/2"	-	-	FF3812M (FF-3812-M)	3/8"	1/2"	-	-
FF1234F (FF-1234-F)	1/2"	3/4"	-	-	FF1234M (FF-1234-M)	1/2"	3/4"	-	-
FF3416F (FF-3416-F)	3/4"	1"	-	-	FF3416M (FF-3416-M)	3/4"	1"	-	-
FF34F (FF-34-F)	3/4"	3/4"	4,000 PSI	12,400 PSI	FF34M (FF-34-M)	3/4"	3/4"	4,000 PSI	12,400 PSI
FF1F (FF-1-F)	1"	1"	3,000 PSI	12,600 PSI	FF1M (FF-1-M)	1"	1"	3,000 PSI	12,600 PSI
