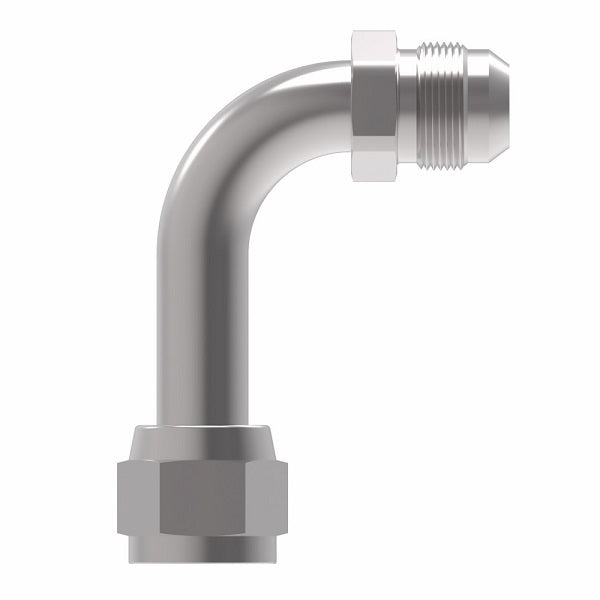

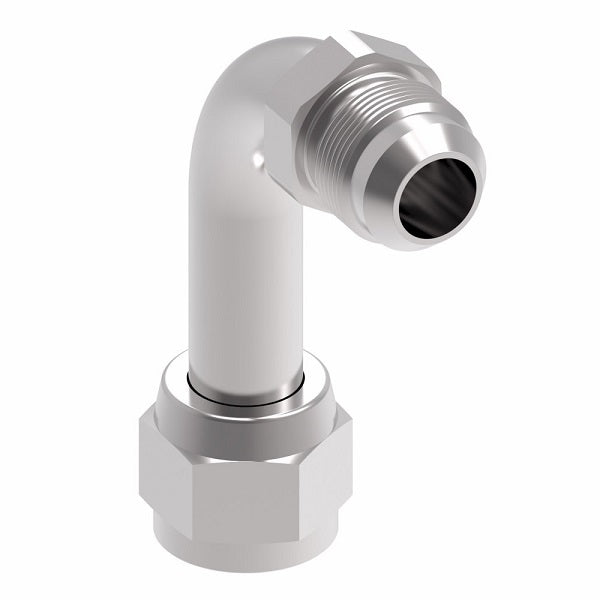

FF5164-1616S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Extra Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel
FF5164-1616S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Extra Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel
FF5164-1616S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Extra Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel
FF5164-1616S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Extra Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

FF5164-1616S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Extra Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

$82.66 - $82.66
$82.66
$82.66 - $82.66
$82.66

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Extra Long Drop Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5164-1616S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 1in Male JIC
Material(s): Steel
Special Properties: Swivel, Extra Long Drop
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A B
FF5164-0808S 0.50" 3/4-16 3/4-16 3.34" 2.16"
FF5164-1212S 0.75" 1-1/16-12 1-1/16-12 4.41" 2.81"
FF5164-1616S 1.00" 1-5/16-12 1-5/16-12 5.24" 3.41"
FF5164-2020S 1.25" 1-5/8-12 1-5/8-12 6.48" 3.71"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
