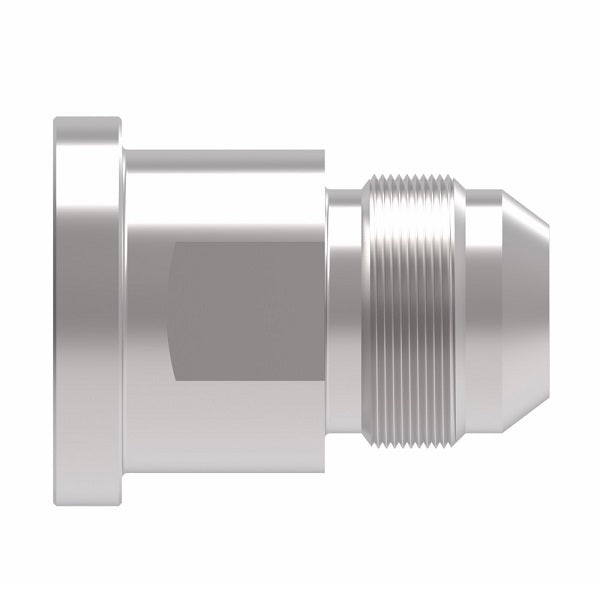

FF5239-1212S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long Adapter | Standard Pressure Series | -12 Code 61 Split Flange x -12 Male 37° JIC Flare | Steel

FF5239-1212S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long Adapter | Standard Pressure Series | -12 Code 61 Split Flange x -12 Male 37° JIC Flare | Steel

$49.36 - $49.36
$49.36
$49.36 - $49.36
$49.36

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Long Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5239-1212S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Code 61 Flange, 3/4in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with 449-74446 flanges
Part Number Steel Split Flange Size Tube O.D. Thread T A
FF5239-1212S 3/4" 0.75" 1-1/16-12 3.17"
FF5239-1616S 1" 1.00" 1-5/16-12 3.76"
FF5239-2020S 1-1/4" 1.25" 1-5/8-12 3.84"
FF5239-2420S 1-1/2" 1.50" 1-5/8-12 5.63"
FF5239-2424S 1-1/2" 1.50" 1-7/8-12 4.67"
FF5239-3232S 2" 2.00" 2-1/2-12 5.63"
