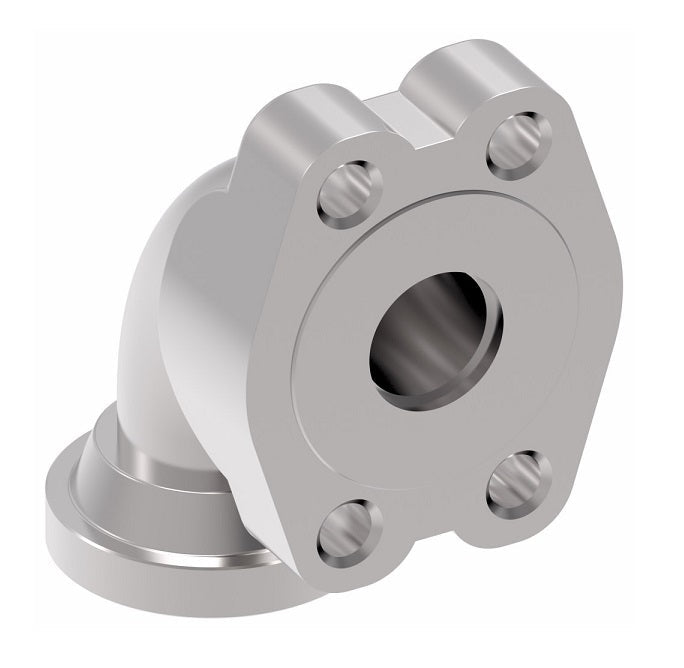

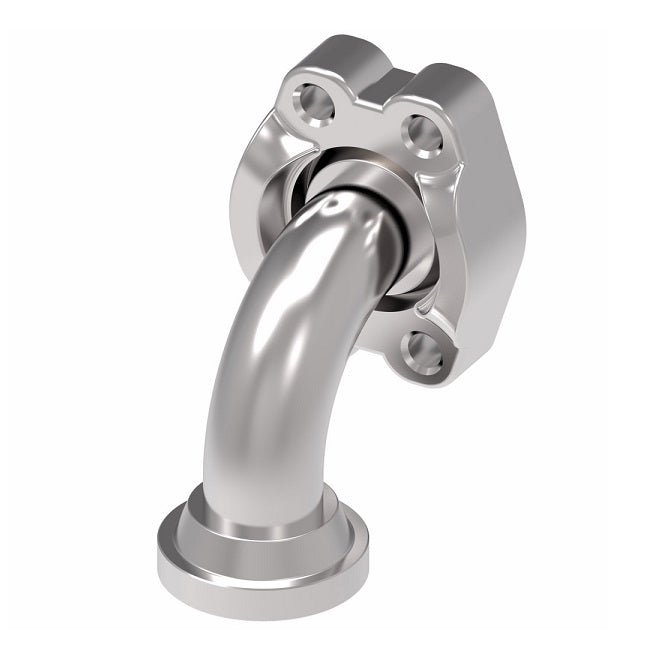

FF5321-2020S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange Long 90° Elbow Adapter | Standard Pressure Series | -20 Swivel Flange x -20 Code 61 Split Flange | Steel

FF5321-2020S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange Long 90° Elbow Adapter | Standard Pressure Series | -20 Swivel Flange x -20 Code 61 Split Flange | Steel

Name: FF5321-2020S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange Long 90° Elbow Adapter | Standard Pressure Series | -20 Swivel Flange x -20 Code 61 Split Flange | Steel
Brand: Danfoss/Eaton
SKU: FF5321-2020S Danfoss
Price: 107.98 USD
Availability: InStock

$107.98 - $107.98

$107.98

$107.98 - $107.98

$107.98

Aeroquip® by Danfoss
SAE Swivel Flange to Code 61 Split Flange Long Adapter
Swivel Flange x Code 61 Split Flange
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF5321-2020S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Code 61 Flange
Material(s):	Steel

Note:
Suitable for pressures through SAE 100R12 4 spiral hose.


Part Number Steel	Shoulder Size	Flange Size	A	B
FF5321-1616S	1"	1"	2.38"	2.38"
FF5321-2020S	1-1/4"	1-1/4"	2.62"	2.62"
FF5321-2424S	1-1/2"	1-1/2"	3.12"	3.12"
FF5321-3232S	2"	2"	4.50"	4.50"
