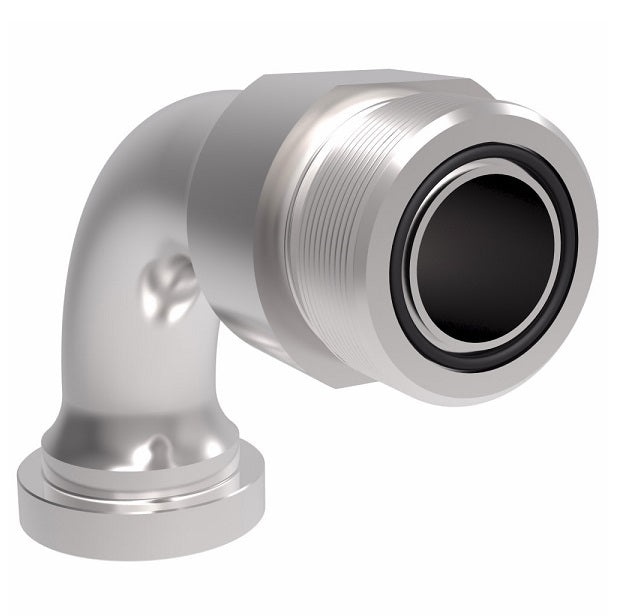

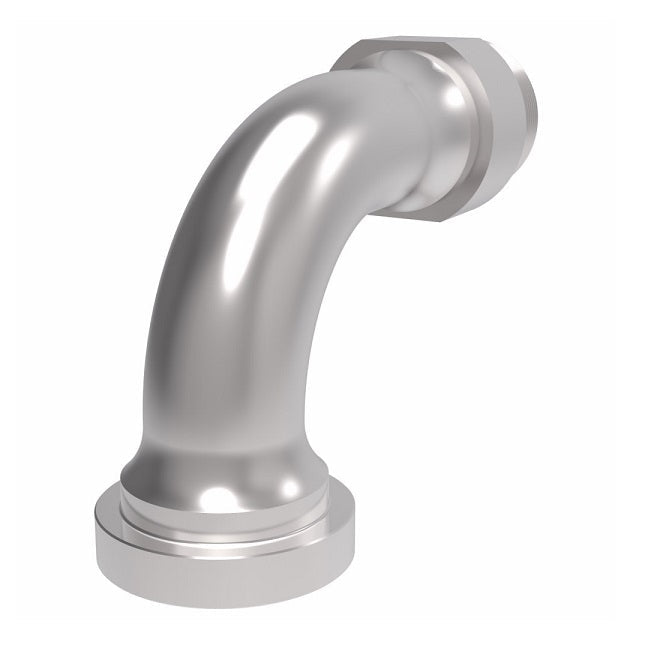

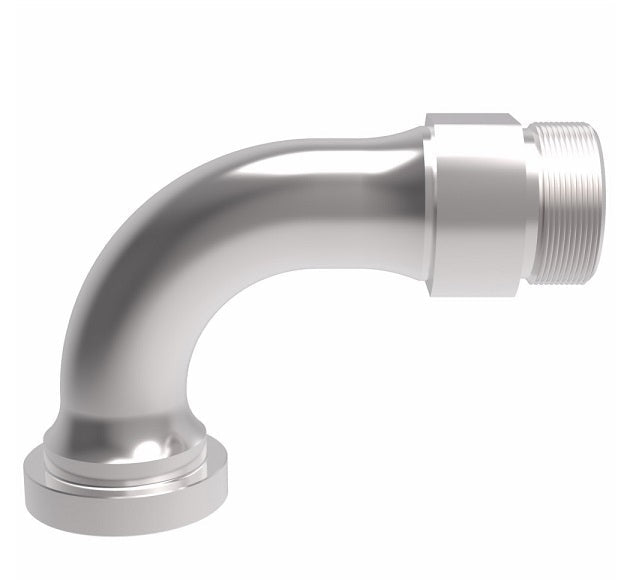

FF5946T1212S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 61 Split Flange | Steel
FF5946T1212S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 61 Split Flange | Steel
FF5946T1212S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 61 Split Flange | Steel
FF5946T1212S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 61 Split Flange | Steel

FF5946T1212S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 61 Split Flange | Steel

$72.91 - $72.91
$72.91
$72.91 - $72.91
$72.91

Aeroquip® by Danfoss
ORS/Code 61 Split Flange Adapter
Male SAE O-Ring Face Seal x Code 61 Split Flange
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5946T1212S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Code 61 Flange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Part Number Steel
Buna-N O-Ring 		Tube O.D. Thread T A B
FF5946T1212S 0.75" 1-3/16-12 2.65" 2.13"
FF5946T1216S 0.75" 1-3/16-12 2.65" 2.13"
FF5946T1616S 1.00" 1-7/16-12 3.22" 2.37"
FF5946T2020S 1.25" 1-11/16-12 3.47" 2.62"
FF5946T2424S 1.50" 2-12 3.97" 3.12"
