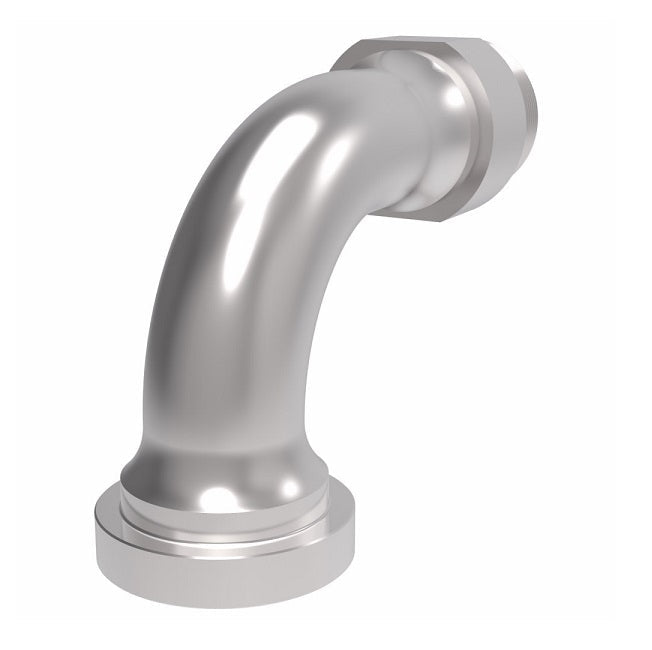

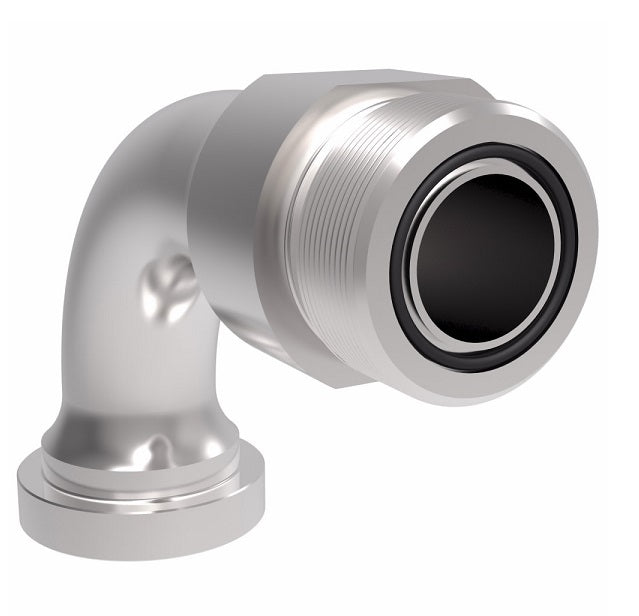

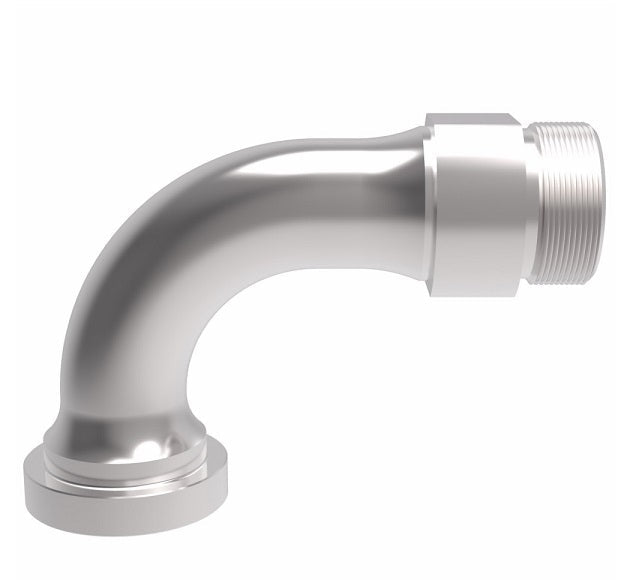

FF5946T1616S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -16 Male SAE O-Ring Face Seal x -16 Code 61 Split Flange | Steel
FF5946T1616S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -16 Male SAE O-Ring Face Seal x -16 Code 61 Split Flange | Steel
FF5946T1616S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -16 Male SAE O-Ring Face Seal x -16 Code 61 Split Flange | Steel
FF5946T1616S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -16 Male SAE O-Ring Face Seal x -16 Code 61 Split Flange | Steel

FF5946T1616S Aeroquip by Danfoss | ORS/Code 61 Split Flange 90° Elbow Adapter | -16 Male SAE O-Ring Face Seal x -16 Code 61 Split Flange | Steel

$76.39 - $76.39
$76.39
$76.39 - $76.39
$76.39

Aeroquip® by Danfoss
ORS/Code 61 Split Flange Adapter
Male SAE O-Ring Face Seal x Code 61 Split Flange
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5946T1616S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male O-Ring Face Seal, 1in Code 61 Flange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Part Number Steel
Buna-N O-Ring 		Tube O.D. Thread T A B
FF5946T1212S 0.75" 1-3/16-12 2.65" 2.13"
FF5946T1216S 0.75" 1-3/16-12 2.65" 2.13"
FF5946T1616S 1.00" 1-7/16-12 3.22" 2.37"
FF5946T2020S 1.25" 1-11/16-12 3.47" 2.62"
FF5946T2424S 1.50" 2-12 3.97" 3.12"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
