FF687-20 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/4" Flange Size | Steel

Name: FF687-20 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/4" Flange Size | Steel
Brand: Danfoss/Eaton
SKU: FF687-20 Danfoss
Price: 29.4 USD
Availability: InStock

$29.40 - $29.40

$29.40

$29.40 - $29.40

$29.40

Aeroquip® by Danfoss
SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF687-20 Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/4in Code 61 Flange
Material(s):	Steel
Seal Material(s):	Viton/FKM

Technical Info:
Crimp Fitting Socket Data.PDF
Specifications:
O-Rings material: Viton 90 Durometer Temperature range: -15°F to +400°F (-25°C to +205°C

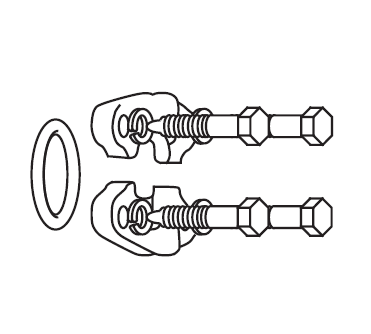

	Components Included in Complete Kit:
Complete Kit Part Number	Flange Halves (2 required) Part Number	Viton O-Ring (1 required) Part Number	Bolts (4 required) Part Number	Lock washer (4 required) Part Number	Nominal Flange Size	A	B	C	Bolt torque lb.-in
FF687-12	449-74446-12	22046-214	FF9442-0620-94	210104-6S	3/4"	1.88"	0.88"	0.41"	250-350
FF687-16	449-74446-16	22046-219	FF9442-0620-94	210104-2-6S	1"	2.06"	1.04"	0.41"	325-425
FF687-20	449-74446-20	22046-222	FF9442-0724-94	210104-7S	1-1/4"	2.31"	1.18"	0.48"	425-550
FF687-24	449-74446-24	22046-225	FF9442-0824-94	210104-8S	1-1/2"	2.75"	1.40"	0.53"	550-700
FF687-32	449-74446-32	22046-228	FF9442-0824-94	210104-8S	2"	3.06"	1.68"	0.53"	650-800

Viton is a trademark of The Chemours Company FC, LLC.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
