FF687-24 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/2" Flange Size | Steel

Name: FF687-24 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/2" Flange Size | Steel
Brand: Danfoss/Eaton
SKU: FF687-24 Danfoss
Price: 38.05 USD
Availability: InStock

$38.05 - $38.05

$38.05

$38.05 - $38.05

$38.05

Aeroquip® by Danfoss
SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF687-24 Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/2in Code 61 Flange
Material(s):	Steel
Seal Material(s):	Viton/FKM

Technical Info:
Crimp Fitting Socket Data.PDF
Specifications:
O-Rings material: Viton 90 Durometer Temperature range: -15°F to +400°F (-25°C to +205°C

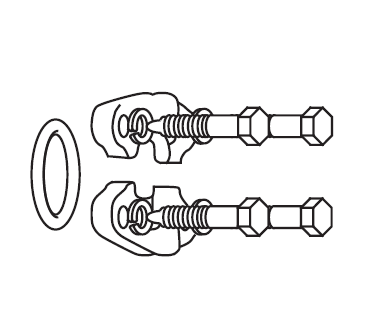

	Components Included in Complete Kit:
Complete Kit Part Number	Flange Halves (2 required) Part Number	Viton O-Ring (1 required) Part Number	Bolts (4 required) Part Number	Lock washer (4 required) Part Number	Nominal Flange Size	A	B	C	Bolt torque lb.-in
FF687-12	449-74446-12	22046-214	FF9442-0620-94	210104-6S	3/4"	1.88"	0.88"	0.41"	250-350
FF687-16	449-74446-16	22046-219	FF9442-0620-94	210104-2-6S	1"	2.06"	1.04"	0.41"	325-425
FF687-20	449-74446-20	22046-222	FF9442-0724-94	210104-7S	1-1/4"	2.31"	1.18"	0.48"	425-550
FF687-24	449-74446-24	22046-225	FF9442-0824-94	210104-8S	1-1/2"	2.75"	1.40"	0.53"	550-700
FF687-32	449-74446-32	22046-228	FF9442-0824-94	210104-8S	2"	3.06"	1.68"	0.53"	650-800

Viton is a trademark of The Chemours Company FC, LLC.
