FF689-24 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/2" Flange Size | Steel

Name: FF689-24 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/2" Flange Size | Steel
Brand: Danfoss/Eaton
SKU: FF689-24 Danfoss
Price: 66.81 USD
Availability: InStock

$66.81 - $66.81

$66.81

$66.81 - $66.81

$66.81

Aeroquip® by Danfoss
SAE Code 62 Split Flange Kit (SAE J518) with Viton O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF689-24 Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/2in Code 61 Flange
Material(s):	Steel
Seal Material(s):	Viton/FKM

Technical Info:
Crimp Fitting Socket Data.PDF
Specifications:
O-Ring material: Viton 90 Durometer Temperature range: -15°F to +400°F (-25°C to +205°C)
Note:
Note: Code 62 split flange kits cannot be used with Cat flange fittings. Use existing split flanges.

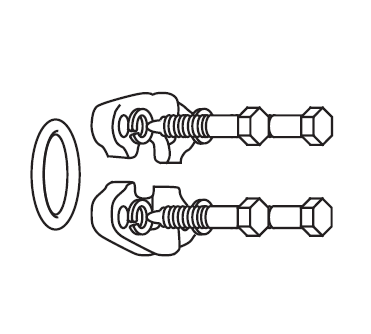

	Components Included in Complete Kit:
Complete Kit Part Number	Flange Halves (2 required) Part Number	Viton O-Ring (1 required) Part Number	Bolts (4 required) Part Number	Lock washer (4 required) Part Number	Nominal Flange Size	A	B	C	Bolt torque lb.-in
-	FC3425-16-449	22046-219	FF9442-0728-94	210104-7S	1"	2.25"	1.10"	0.50"	500-600
FF689-20	FC3425-20-449	22046-222	FF9442-0828-94	210104-8S	1-1/4"	2.62"	1.24"	0.60"	750-900
FF689-24	FC3425-24-449	22046-225	FF9442-1036-94	210104-10S	1-1/2"	3.12"	1.44"	0.66"	1400-1600
-	FC3425-32-449	22046-228	FF9442-1244-94	210104-12S	2"	3.81"	1.76"	0.78"	2400-2600

Viton is a trademark of The Chemours Company FC, LLC.
