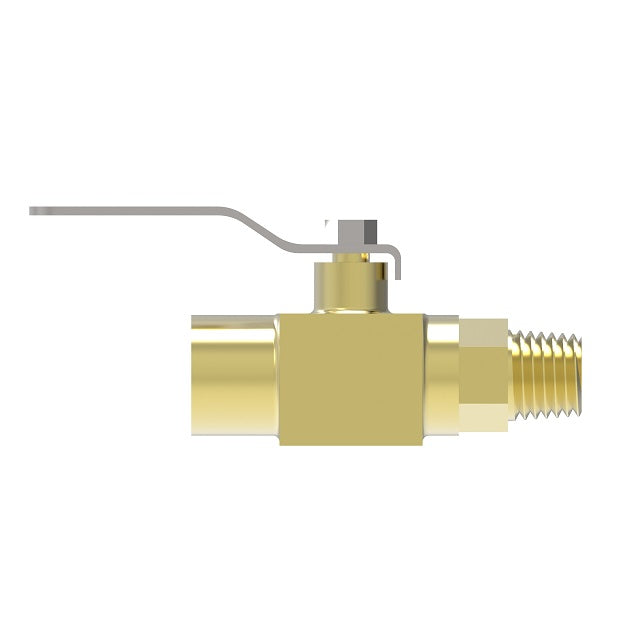

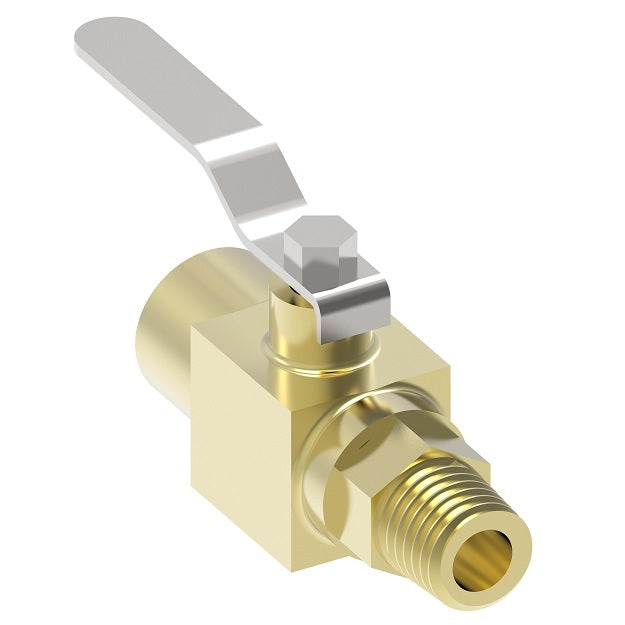

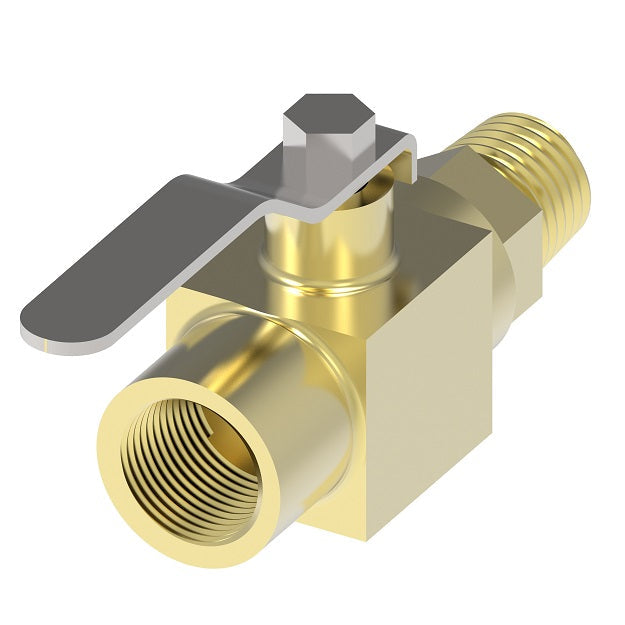

FF90590-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Male NPT x 1/8" Female NPT | Brass
FF90590-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Male NPT x 1/8" Female NPT | Brass
FF90590-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Male NPT x 1/8" Female NPT | Brass
FF90590-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Male NPT x 1/8" Female NPT | Brass

FF90590-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Male NPT x 1/8" Female NPT | Brass

$29.95 - $29.95
$29.95
$29.95 - $29.95
$29.95

Aeroquip® by Danfoss
Ball Valve - Mini Instrumentation 2-Way Ball Valve - Straight

Specifications for Variant SKU: FF90590-02 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 1/8in Female NPT
Material(s): Brass
Applicable Specs & Approvals: Mini/Micro Size
Use With:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Coolant service.
  • Water service.
  • Compact shut off installations.
  • Low cost instrumentation.
  • Hose shut off.
Features/Benefits:
  • Blowout proof stem.
  • Floating ball design.
  • 1/4 turn - full on/off.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated ball.
  • Viton stem seal.
  • Standard metal handle.
Pressure:
  • Working pressure: 1,000 psig WOG @ 70°F.
Temperature Range:
  • -40°F + 300°F
Orifice Diameters:
  • 1/8" & 1/4" = 0.250"
Note:
  • Not steam rated.
Brass
Part Number 		Connections Size X Y Z
FF90590-02 M x F NPT 1/8" 1.13" 0.75" 1.25"
FF90590-04 M x F NPT 1/4" 1.13" 0.81" 1.25"
FF90591-02 M x M NPT 1/8" 1.13" 0.75" 1.25"
FF90591-04 M x M NPT 1/4" 1.13" 0.81" 1.25"
FF90592-02 F x F NPT 1/8" 1.13" 0.75" 1.25"
FF90592-04 F x F NPT 1/4" 1.13" 0.85" 1.25"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
