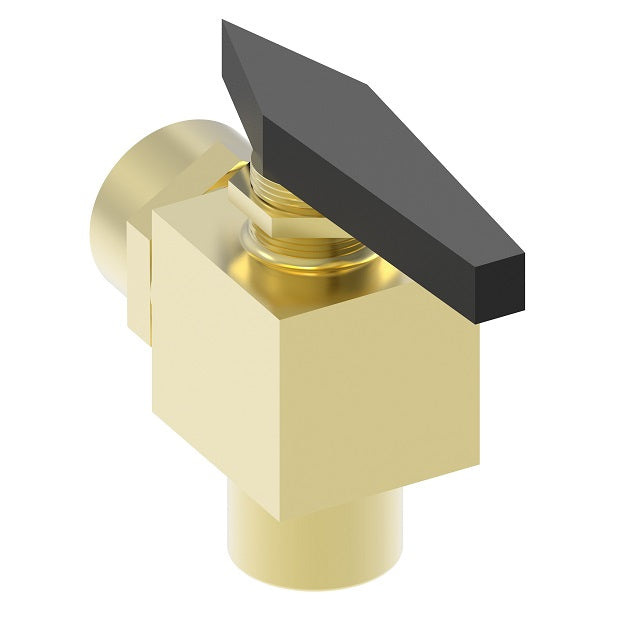

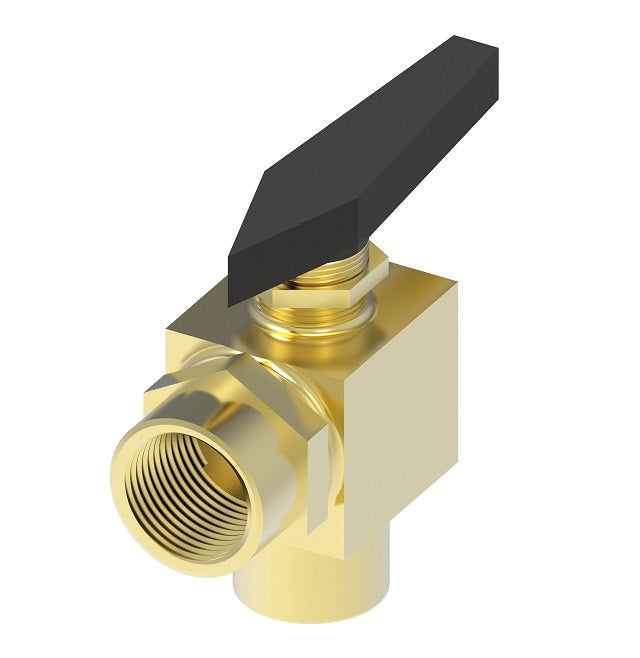

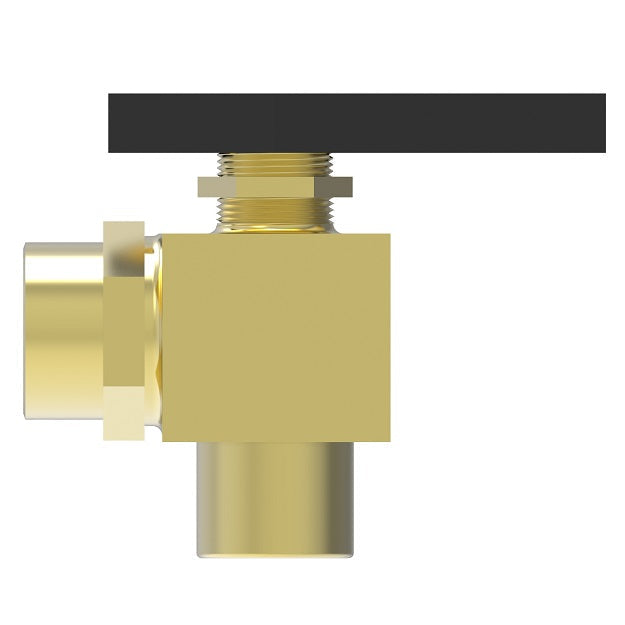

FF90595-02 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/8" Female NPT x 1/8" Female NPT | Brass
FF90595-02 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/8" Female NPT x 1/8" Female NPT | Brass
FF90595-02 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/8" Female NPT x 1/8" Female NPT | Brass
FF90595-02 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/8" Female NPT x 1/8" Female NPT | Brass

FF90595-02 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/8" Female NPT x 1/8" Female NPT | Brass

$112.27 - $112.27
$112.27
$112.27 - $112.27
$112.27

Aeroquip® by Danfoss
Ball Valve - Instrumentation 2-Way Ball Valve - 90° Elbow

Specifications for Variant SKU: FF90595-02 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s): Brass
For use with:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Water service.
  • Panel mounting.
Features/Benefits:
  • Blowout proof stem.
  • Double o-ring stem seal.
  • 90º configuration eliminates fittings.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated brass ball.
  • Metal retainer seal.
  • Seals: Ball Seats = Teflon,
    Stem Seals = 2 O-Rings (Viton & Buna-N).
Pressure:
  • Working pressure: 1/8" & 1/4" = 1500 psig @ 70°F
  • 3/8" & 1/2" = 1,000 psig @ 70°F (side port inlet) 1000 psig (bottom port inlet)
Temperature Range:
  • Temperature range: -40ºF to +300ºF
Orifice Diameters:
  • 1/8" & 1/4" = .250"
  • 3/8" & 1/2" = .340"
  • Panel mount hole size: 9/16" ID
Note:
  • Not steam rated.
Brass
Part Number 		Connections Size X Y Z
FF90595-02 F x F NPT 1/8" 0.92" 0.38" 2.12"
FF90595-04 F x F NPT 1/4" 0.92" 0.38" 2.12"
FF90595-06 F x F NPT 3/8" 1.10" 0.75" 2.59"
FF90595-08 F x F NPT 1/2" 1.19" 0.75" 2.59"
FF90596-02 Compression 1/8" 0.92" 0.38" 2.12"
FF90596-06 Compression 3/8" 1.10" 0.75" 2.59"
FF90596-08 Compression 1/2" 1.19" 0.75" 2.59"
