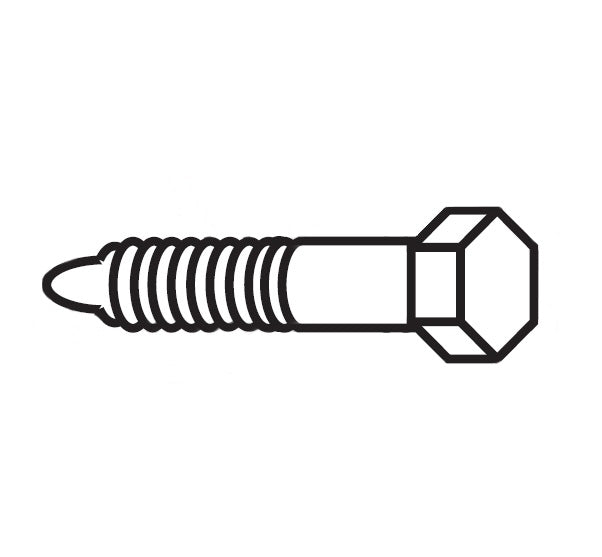

FF9442-0824-94 Aeroquip by Danfoss | SAE Code 61/Code 62 Split Flange Bolt (1 Bolt) | for 1-1/2", 2" Flange Size | Steel

FF9442-0824-94 Aeroquip by Danfoss | SAE Code 61/Code 62 Split Flange Bolt (1 Bolt) | for 1-1/2", 2" Flange Size | Steel

$1.36 - $1.36
$1.36
$1.36 - $1.36
$1.36

Aeroquip® by Danfoss
Flange Bolt for SAE Code 61 Split Flange Kit (SAE J518)

Important: 4 bolts are required for a complete assembly.
Flange Bolts are not sold as a pack of 4. If you require 4 bolts, set the quantity below, to 4.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9442-0824-94 Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Technical Info:
Specifications:
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)
Bolts
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FF9442-0520-94 1/2" 1.50" 0.68" 0.34" 175-225
FF9442-0620-94 3/4" 1.88" 0.88" 0.41" 250-350
FF9442-0620-94 1" 2.06" 1.04" 0.41" 325-425
FF9442-0724-94 1-1/4" 2.31" 1.18" 0.48" 425-550
FF9442-0824-94 1-1/2" 2.75" 1.40" 0.53" 550-700
FF9442-0824-94 2" 3.06" 1.68" 0.53" 650-800
FF9442-0828-94 2-1/2" 3.50" 2.00" 0.53" 950-1100
FF9442-1028-94 3" 4.19" 2.44" 0.66" 1650-1800
