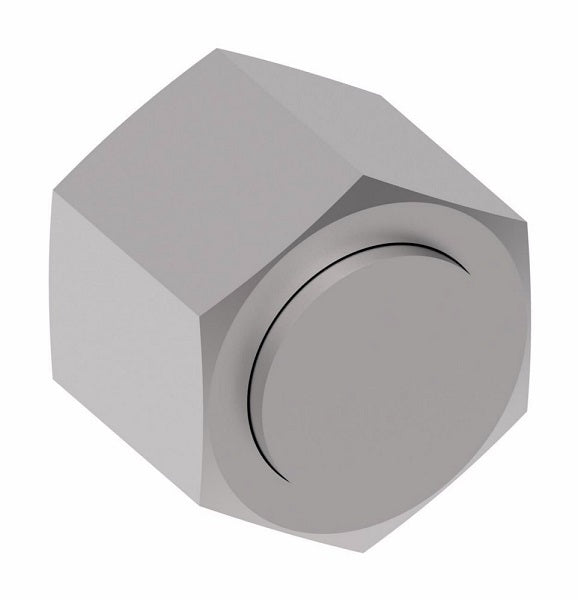

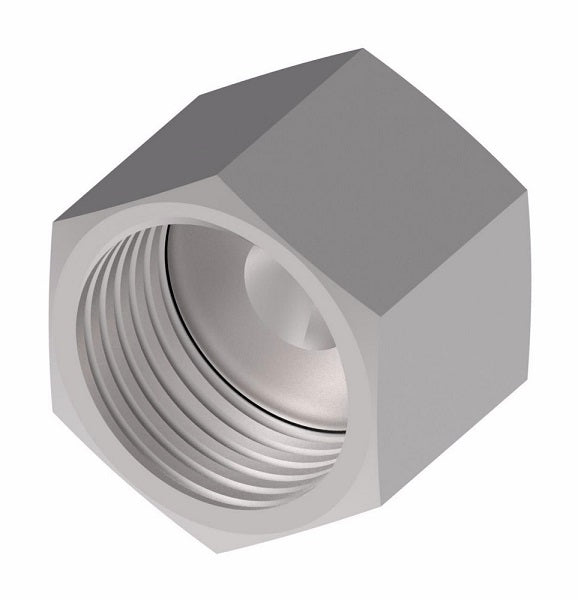

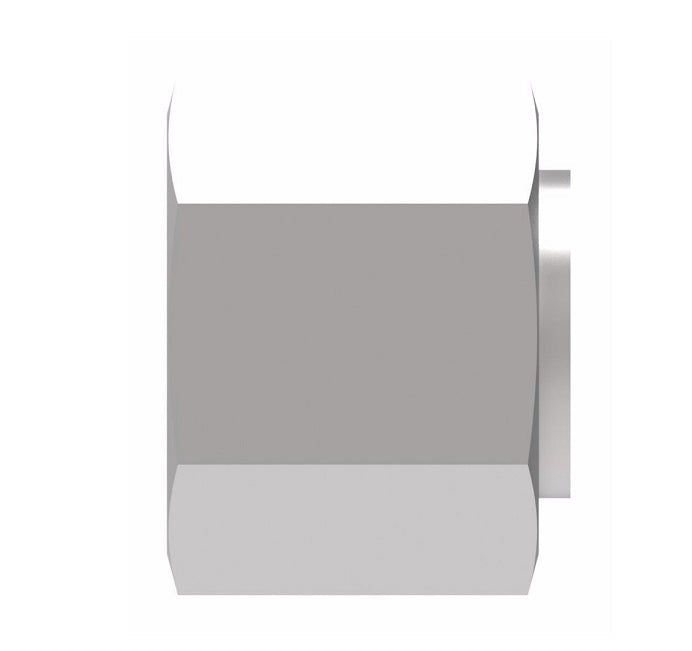

FF9863-20S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -20 Size | Steel
FF9863-20S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -20 Size | Steel
FF9863-20S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -20 Size | Steel
FF9863-20S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -20 Size | Steel

FF9863-20S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -20 Size | Steel

$13.94 - $13.94
$13.94
$13.94 - $13.94
$13.94

Aeroquip® by Danfoss
Female O-Ring Face Seal (ORS) Cap

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9863-20S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1-1/4in Female O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520112
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 A D Hex 1
FF9863-04S 0.25" 9/16-18 0.66" 0.32" 0.69"
FF9863-06S 0.38" 11/16-16 0.75" 0.38" 0.81"
FF9863-08S 0.50" 13/16-16 0.90" 0.43" 0.94"
FF9863-10S 0.63" 1-14 1.00" 0.53" 1.12"
FF9863-12S 0.75" 1-3/16-12 1.10" 0.57" 1.38"
FF9863-16S 1.00" 1-7/16-12 1.17" 0.58" 1.62"
FF9863-20S 1.25" 1-11/16-12 1.17" 0.58" 1.88"
FF9863-24S 1.50" 2-12 1.17" 0.58" 2.25"
