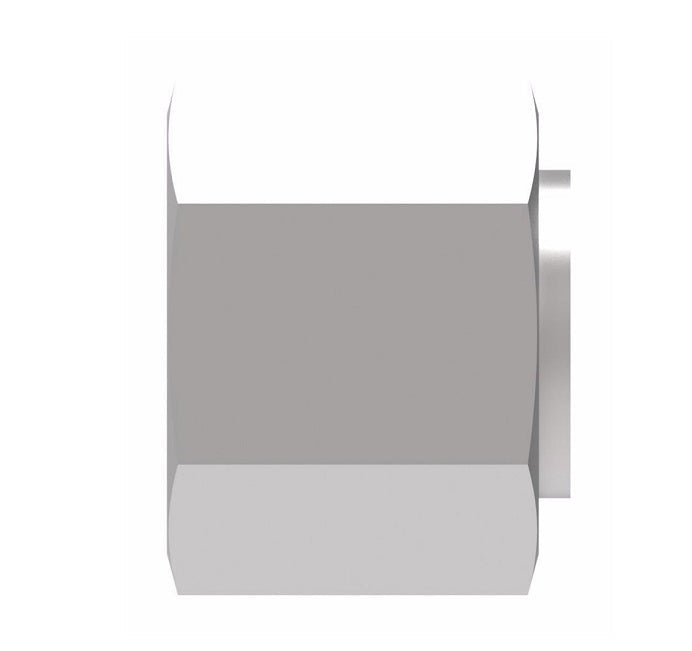

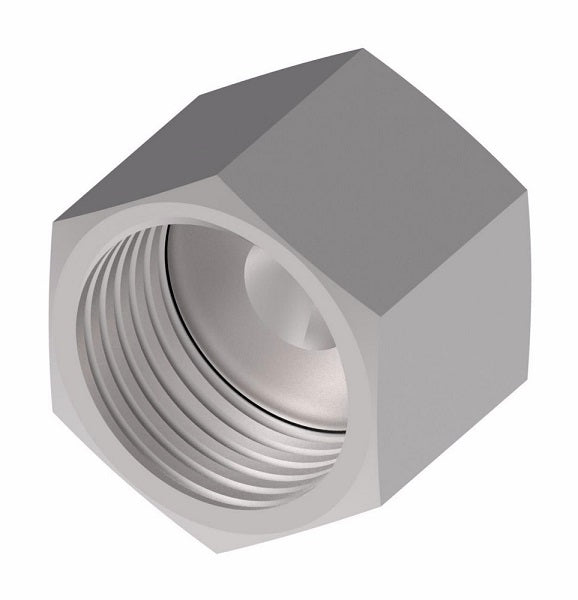

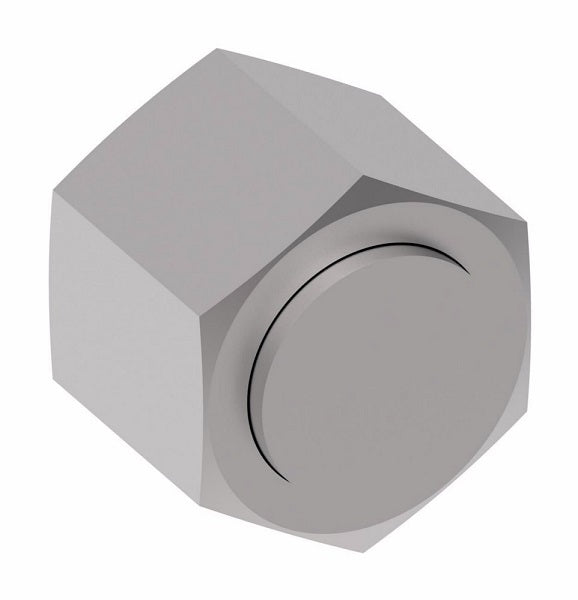

FF9863-24S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -24 Size | Steel

FF9863-24S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -24 Size | Steel

Name: FF9863-24S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -24 Size | Steel
Brand: Danfoss/Eaton
SKU: FF9863-24S Danfoss
Price: 44.75 USD
Availability: InStock

$44.75 - $44.75

$44.75

$44.75 - $44.75

$44.75

Aeroquip® by Danfoss
Female O-Ring Face Seal (ORS) Cap

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF9863-24S Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	1-1/2in Female O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520112
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	A	D	Hex 1
FF9863-04S	0.25"	9/16-18	0.66"	0.32"	0.69"
FF9863-06S	0.38"	11/16-16	0.75"	0.38"	0.81"
FF9863-08S	0.50"	13/16-16	0.90"	0.43"	0.94"
FF9863-10S	0.63"	1-14	1.00"	0.53"	1.12"
FF9863-12S	0.75"	1-3/16-12	1.10"	0.57"	1.38"
FF9863-16S	1.00"	1-7/16-12	1.17"	0.58"	1.62"
FF9863-20S	1.25"	1-11/16-12	1.17"	0.58"	1.88"
FF9863-24S	1.50"	2-12	1.17"	0.58"	2.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
