FFX-06-06 by Kurt Hydraulics | Female O-Ring Face Seal | Swivel | for 3/8" Hose ID

Save $3.73 Save $3.73
Original price $9.32
Original price $9.32 - Original price $9.32
Original price $9.32
Current price $5.59
$5.59 - $5.59
Current price $5.59

by Kurt Hydraulics
FFX - O-Ring Face Seal Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FFX-06-06 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Female O-Ring Face Seal
Special Properties: Swivel

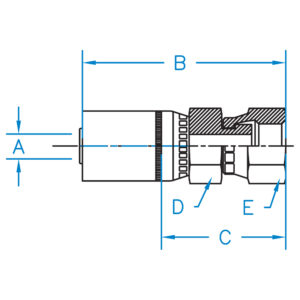

Part Number A B C D E Hose ID
(In)
Thread
FFX-04-04 N/A N/A N/A N/A N/A N/A N/A
FFX-05-06 0.3125 N/A N/A N/A N/A 5/16" 11/16-16
FFX-05-06-R5 N/A N/A N/A N/A N/A N/A N/A
FFX-06-04 0.375 2.702 1.203 3/4 11/16 3/8" 9/16-18
FFX-06-06 0.375 2.671 1.145 11/16 13/16 3/8" 11/16-16
FFX-06-08 0.375 2.841 0.700 7/8 15/16 3/8" 13/16-16
FFX-08-06 0.500 2.876 1.425 7/8 13/16 1/2" 11/16-16
FFX-08-08 0.500 2.919 1.904 7/8 15/16 1/2" 13/16-16
FFX-08-10 0.500 3.114 1.602 15/16 1-1/8 1/2" 1-14
FFX-08-12 0.500 3.214 1.714 1-1/8 1-3/8 1/2" 1-3/16-12
FFX-10-08 0.625 3.042 1.542 1-1/8 1.000 5/8" 13/16-16
FFX-10-10 0.625 3.128 1.628 1-1/8 1-1/8 5/8" 1-14
FFX-10-12 0.625 3.230 1.730 1-1/8 1-3/8 5/8" 1-3/16-12
FFX-12-10 0.750 3.214 1.621 1-1/8 1-1/8 3/4" 1-14
FFX-12-12 0.750 3.230 1.730 1-1/8 1-3/8 3/4" 1-3/16-12
FFX-12-16 0.750 3.376 1.783 1-1/4 1-5/8 3/4" 1-7/16-12
FFX-16-16 1.000 3.609 1.901 1-3/8 1-5/8 1.000" 1-7/16-12
FFX-16-20 1.000 2.603 1.869 1-5/8 1-7/8 1.000" 1-11/16-12
FFX-20-20 1.250 3.870 1.869 1-3/4 1-7/8 1.250" 1-11/16-12
FFX-20-24 1.250 4.210 2.210 1-7/8 2-1/4 1.250" 2-12


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
