FFX-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | Swivel | for 1-1/4" Hose ID

FFX-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | Swivel | for 1-1/4" Hose ID

Save $30.98 Save $30.98
$77.45
$77.45 - $77.45
$77.45
$46.47
$46.47 - $46.47
$46.47

by Kurt Hydraulics
FFX-JJ - O-Ring Face Seal Female Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FFX-20-20-JJ Kurt
Series: JJ Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Female O-Ring Face Seal
Special Properties: Swivel

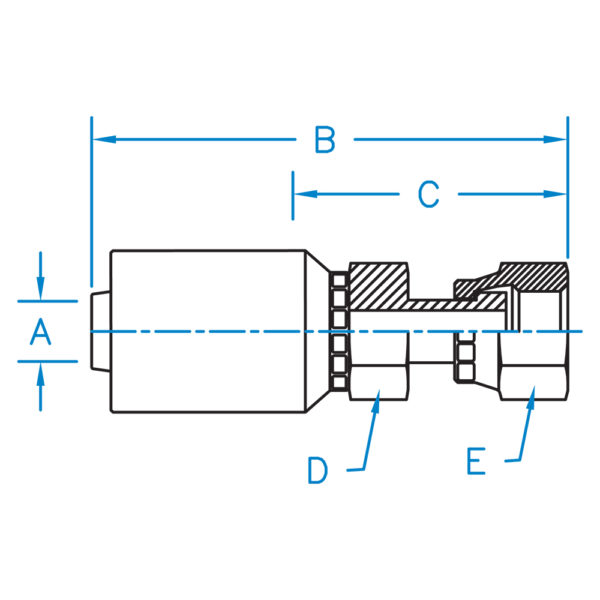

Part Number A B C D E Hose ID
(In)		 Thread
FFX-20-20-JJ 1.250 4.450 1.850 1-13/16 1-7/8 1-1/4" 1-11/16 - 12
FFX-24-24-JJ 1.500 4.840 2.123 2-1/4 2-1/4 1-1/2" 2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
