FFX-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | Swivel | for 1-1/2" Hose ID

Name: FFX-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | Swivel | for 1-1/2" Hose ID
Brand: Kurt Hydraulics
SKU: FFX-24-24-JJ Kurt
Price: 58.49 USD
Availability: InStock

Save $38.99

$97.48

$97.48 - $97.48

$97.48

$58.49

$58.49 - $58.49

$58.49

by Kurt Hydraulics
FFX-JJ - O-Ring Face Seal Female Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX-24-24-JJ Kurt
Series:	JJ Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Female O-Ring Face Seal
Special Properties:	Swivel

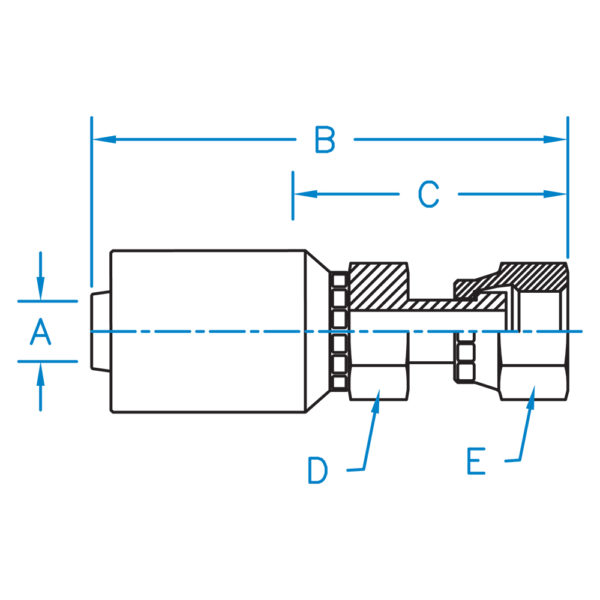

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FFX-20-20-JJ	1.250	4.450	1.850	1-13/16	1-7/8	1-1/4"	1-11/16 - 12
FFX-24-24-JJ	1.500	4.840	2.123	2-1/4	2-1/4	1-1/2"	2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
