FFX45-04-06-SST by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | 45° Elbow | Swivel | PTFE Coupling | for 1/4" Hose ID

Save $6.26

$15.65

$15.65 - $15.65

$15.65

$9.39

$9.39 - $9.39

$9.39

by Kurt Hydraulics
FFX45-SST - O-Face Seal Female 45 deg. Bent Tube Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX45-04-06-SST Kurt
Series:	SST Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Hose Barb, 3/8in Female O-Ring Face Seal
Special Properties:	Swivel, Jump Size

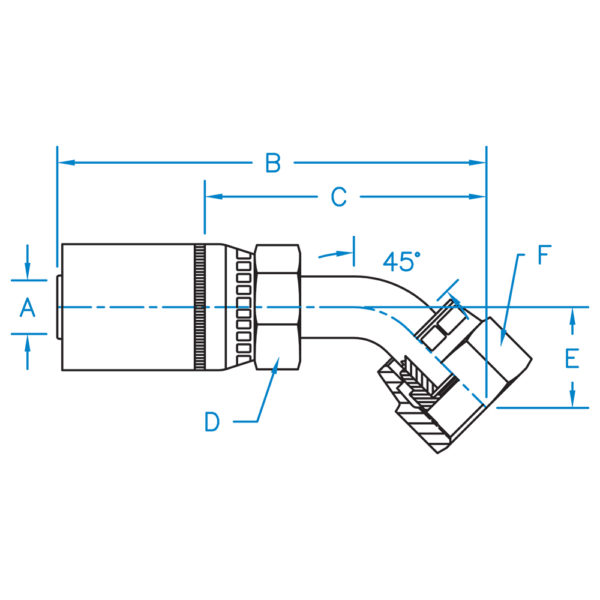

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX45-04-04-SST	0.250	2.551	1.473	5/8	0.409	11/16	1/4"	9/16-18
FFX45-04-06-SST	0.250	2.650	1.513	3/4	0.429	13/16	1/4"	11/16-16
FFX45-06-06-SST	0.375	2.825	1.513	3/4	0.429	13/16	3/8"	11/16-16
FFX45-06-08-SST	0.375	3.152	1.752	7/8	0.590	15/16	3/8"	13/16-16
FFX45-08-08-SST	0.500	3.315	1.752	7/8	0.590	15/16	1/2"	13/16-16
FFX45-08-10-SST	0.500	3.580	2.312	7/8	0.690	1-1/8	1/2"	1-14
FFX45-10-10-SST	0.625	3.610	2.218	7/8	0.690	1-1/8	5/8"	1-14
FFX45-10-12-SST	0.625	4.110	2.572	1-1/8	0.831	1-3/8	5/8"	1-3/16-12
FFX45-12-12-SST	0.750	4.329	2.572	1-1/8	0.831	1-3/8	3/4"	1-3/16-12
FFX45-16-16-SST	1.000	4.550	2.843	1-3/8	0.970	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
