FFX45-06-08-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 1/2" Female O-Ring Face Seal Swivel | 45° Elbow | Carbon Steel

FFX45-06-08-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 1/2" Female O-Ring Face Seal Swivel | 45° Elbow | Carbon Steel

Save $9.01 Save $9.01
$22.53
$22.53 - $22.53
$22.53
$13.52
$13.52 - $13.52
$13.52

Kurt Hydraulics
O-Ring Face Seal 45° Bent Tube Female Swivel
Specifications for Variant SKU: FFX45-06-08-K2 Kurt
Series: K2 Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Hose Barb, 1/2in Female O-Ring Face Seal
Material(s): Carbon Steel
Special Properties: Swivel

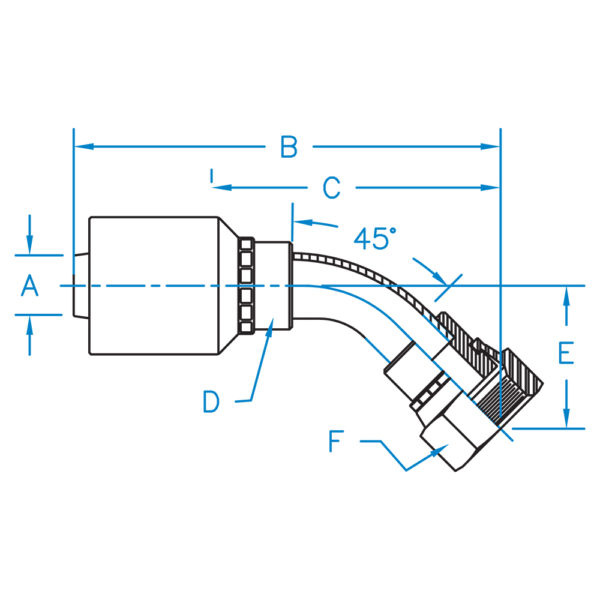

Part Number Hose I.D. (in.) B C D E F Thread
FFX45-04-04-K2 1/4" 2.86" 1.80" 5/8" 0.44" 11/16" 9/16"-18
FFX45-04-06-K2 1/4" 2.81" 1.75" 5/8" 0.44" 5/8" 11/16"-16
FFX45-06-06-K2 3/8" 3.29" 1.92" 3/4" 0.43" 13/16" 11/16"-16
FFX45-06-08-K2 3/8" 3.22" 1.85" 3/4" 0.59" 15/16" 13/16"-16
FFX45-08-06-K2 1/2" 3.31" 1.97" 3/4" 0.43" 13/16" 11/16"-16
FFX45-08-08-K2 1/2" 3.24" 1.90" 7/8" 0.59" 15/16" 13/16"-16
FFX45-08-10-K2 1/2" 3.43" 2.09" 7/8" 0.63" 1-1/8" 1"-14
FFX45-08-12-K2 1/2" 3.48" 2.14" 1" 0.83" 1-3/8" 1-3/16"-12
