FFX45-12-12-W by Kurt Hydraulics | Female O-Ring Face Seal | 45 Degree | Swivel | for 3/4" Hose ID

FFX45-12-12-W by Kurt Hydraulics | Female O-Ring Face Seal | 45 Degree | Swivel | for 3/4" Hose ID

Save $19.95 Save $19.95
$49.87
$49.87 - $49.87
$49.87
$29.92
$29.92 - $29.92
$29.92
by Kurt Hydraulics
FFX45-W - O-Ring Face Seal 45 deg. Bent Tube Female Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FFX45-12-12-W Kurt
Series: W Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties: Swivel

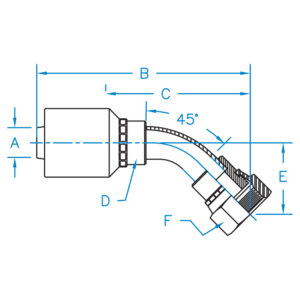

Part Number A B C D E F Hose ID
(In)		 Thread
FFX45-06-06-W 0.375 3.15 1.92 3/4R 0.430 13/16 3/8" 11/16-16
FFX45-06-08-W 0.375 3.216 1.846 3/4R 0.590 15/16 3/8" 13/16-16
FFX45-08-08-W 0.500 3.030 1.690 7/8R 0.590 15/16 1/2" 13/16-16
FFX45-08-10-W 0.500 3.46 2.12 7/8R 0.63 1-1/8 1/2" 1-14
FFX45-08-12-W 0.500 3.476 2.136 1.0R 0.829 1-3/8 1/2" 1-3/16-12
FFX45-10-10-W 0.625 3.750 1.885 1.0R 0.429 1-1/8 5/8" 1-14
FFX45-10-12-W 0.625 4.206 2.106 1.0R 0.807 1-3/8 5/8" 1-1/16-12
FFX45-12-12-W 0.750 4.820 2.717 1.0R 0.807 1-3/8 3/4" 1-3/16-12
FFX45-12-16-W 0.750 4.910 3.120 1.0R 1.140 1-5/8 3/4" 1-7/16-12
FFX45-16-16-W 1.000 5.110 3.000 1-5/16R 0.940 1-5/8 1.000" 1-7/16-12
FFX45-16-20-W 1.000 5.290 3.180 1-5/16R 1.300 2.000 1.000" 1-11/16-12
FFX45-20-20-W 1.250 6.16 3.62 1-5/8R 1.09 2.000 1-1/4" 1-11/16-12
FFX45-20-24-W 1.250 6.57 4.03 1-5/8R 1.5 2-1/4 1-1/4" 2-12
FFX45-24-24-W 1.500 7.430 4.830 2.0R 1.800 2-1/4 1-1/2" 2-12


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
