FFX45-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female O-Ring Face Seal | 45° Elbow | Swivel | for 3/4" Hose ID

Save $23.35

$58.38

$58.38 - $58.38

$58.38

$35.03

$35.03 - $35.03

$35.03

by Kurt Hydraulics
FFX45-WHP - O-Face Seal Female 45 deg. Bent Tube Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX45-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties:	Swivel

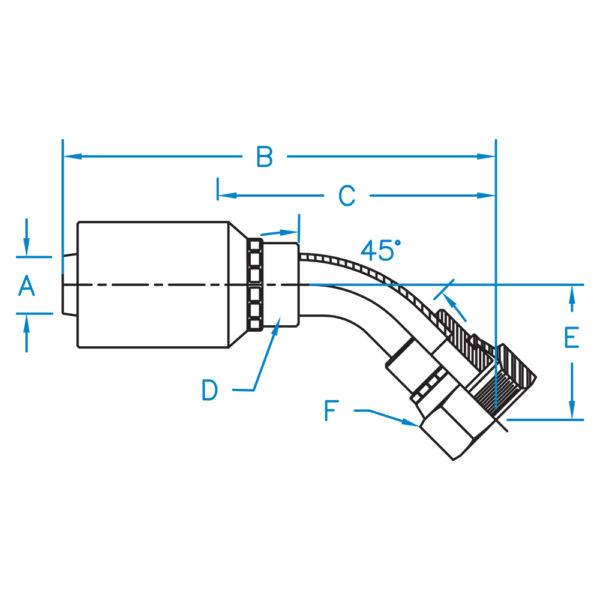

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX45-12-12-WHP	0.750	5.169	2.739	1-3/16R	0.810	1-3/8	3/4"	1-3/16-12
FFX45-16-16-WHP	1.000	5.639	3.109	1-7/16R	0.940	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
