FFX45-16-16 by Kurt Hydraulics | Female O-Ring Face Seal | 45° Elbow | Swivel | for 1" Hose ID

FFX45-16-16 by Kurt Hydraulics | Female O-Ring Face Seal | 45° Elbow | Swivel | for 1" Hose ID

Save $22.73 Save $22.73
$56.82
$56.82 - $56.82
$56.82
$34.09
$34.09 - $34.09
$34.09

by Kurt Hydraulics
FFX45 - O-Ring Face Seal 45 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FFX45-16-16 Kurt
Series: Braided Coupling Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Hose Barb, 1in Female O-Ring Face Seal
Special Properties: Swivel

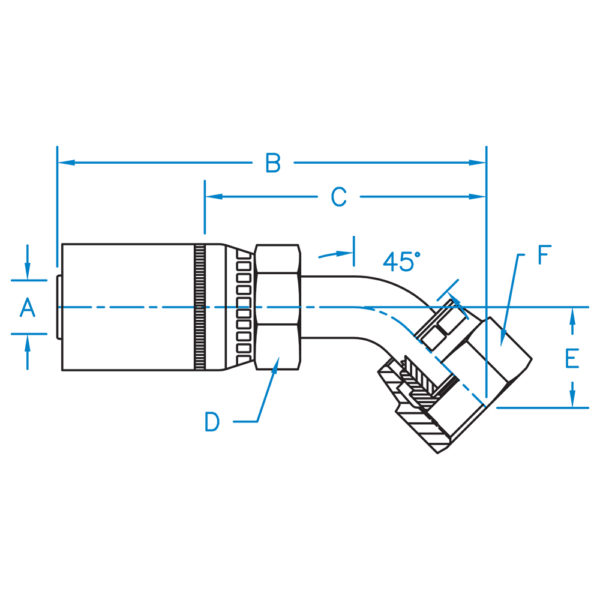

Part Number A B C D E F Hose ID
(In)		 Thread
FFX45-04-04 0.250 3.135 1.880 5/8 0.390 11/16 1/4" 9/19-18
FFX45-04-06 0.250 3.225 1.970 5/8 0.440 13/16 1/4" 11/16-16
FFX45-06-06 0.375 3.470 1.970 3/4 0.433 13/16 3/8" 11/16-16
FFX45-06-08 0.375 3.427 2.310 3/4 0.590 15/16 3/8" 13/16-16
FFX45-08-06 0.500 3.578 2.078 7/8 0.433 13/16 1/2" 11/16-16
FFX45-08-08 0.500 3.500 2.000 7/8 0.590 15/16 1/2" 13/16-16
FFX45-08-10 0.500 3.720 2.210 7/8 0.630 1-1/8 1/2" 1-14
FFX45-08-12 0.500 3.765 2.265 1-1/8 0.829 1-3/8 1/2" 1-3/16-12
FFX45-10-10 0.625 3.848 1.968 1-1/16 0.780 1-1/8 5/8" 1-14
FFX45-10-12 0.625 4.329 2.449 1-1/8 1.120 1-3/8 5/8" 1-3/16-12
FFX45-12-10 0.750 N/A N/A 1-1/8 N/A N/A 3/4" 1-14
FFX45-12-12 0.750 3.89 2.28 1-1/8 0.830 1-3/8 3/4" 1-3/16-12
FFX45-12-16 0.750 4.54 2.98 1-1/8 0.97 1-5/8 3/4" 1-7/16-12
FFX45-16-16 1.000 4.55 2.82 1-3/8 0.95 1-5/8 1.000" 1-7/16-12
FFX45L-16-16 1.000 6.1 4.366 1-3/8 0.94 1-5/8 1.0 1-7/16-12
FFX45LL-16-16 1.000 8.1 6.37 1-3/8 0.94 1-5/8 1.0 1-7/16-12
FFX45-16-20 1.000 5.519 3.239 1-3/8 1.300 1-7/8 1.000" 1-11/16-12
FFX45-20-20 1.250 5.571 3.571 1-3/4 1.240 1-7/8 1.250" 1-11/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
