FFX45-20-24-W by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | 45 Degree | Swivel | for 1-1/4" Hose ID

Save $10.52

$94.69

$94.69 - $94.69

$94.69

$84.17

$84.17 - $84.17

$84.17

by Kurt Hydraulics
FFX45-W - O-Ring Face Seal 45 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FFX45-20-24-W Kurt
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/2in Female O-Ring Face Seal
Special Properties:	Swivel, Jump Size

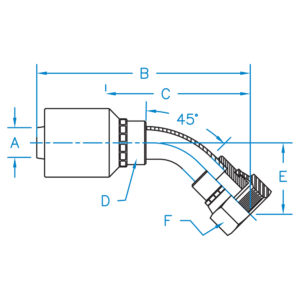

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX45-06-06-W	0.375	3.15	1.92	3/4R	0.430	13/16	3/8"	11/16-16
FFX45-06-08-W	0.375	3.216	1.846	3/4R	0.590	15/16	3/8"	13/16-16
FFX45-08-08-W	0.500	3.030	1.690	7/8R	0.590	15/16	1/2"	13/16-16
FFX45-08-10-W	0.500	3.46	2.12	7/8R	0.63	1-1/8	1/2"	1-14
FFX45-08-12-W	0.500	3.476	2.136	1.0R	0.829	1-3/8	1/2"	1-3/16-12
FFX45-10-10-W	0.625	3.750	1.885	1.0R	0.429	1-1/8	5/8"	1-14
FFX45-10-12-W	0.625	4.206	2.106	1.0R	0.807	1-3/8	5/8"	1-1/16-12
FFX45-12-12-W	0.750	4.820	2.717	1.0R	0.807	1-3/8	3/4"	1-3/16-12
FFX45-12-16-W	0.750	4.910	3.120	1.0R	1.140	1-5/8	3/4"	1-7/16-12
FFX45-16-16-W	1.000	5.110	3.000	1-5/16R	0.940	1-5/8	1.000"	1-7/16-12
FFX45-16-20-W	1.000	5.290	3.180	1-5/16R	1.300	2.000	1.000"	1-11/16-12
FFX45-20-20-W	1.250	6.16	3.62	1-5/8R	1.09	2.000	1-1/4"	1-11/16-12
FFX45-20-24-W	1.250	6.57	4.03	1-5/8R	1.5	2-1/4	1-1/4"	2-12
FFX45-24-24-W	1.500	7.430	4.830	2.0R	1.800	2-1/4	1-1/2"	2-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
