FFX45-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | 45° Elbow | Swivel | for 1-1/2" Hose ID

Save $13.27

$119.42

$119.42 - $119.42

$119.42

$106.15

$106.15 - $106.15

$106.15

by Kurt Hydraulics
FFX45-JJ - O-Ring Face Seal 45 deg. Bent Tube Female Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FFX45-24-24-JJ Kurt
Series:	FFX45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Female O-Ring Face Seal
Special Properties:	Swivel

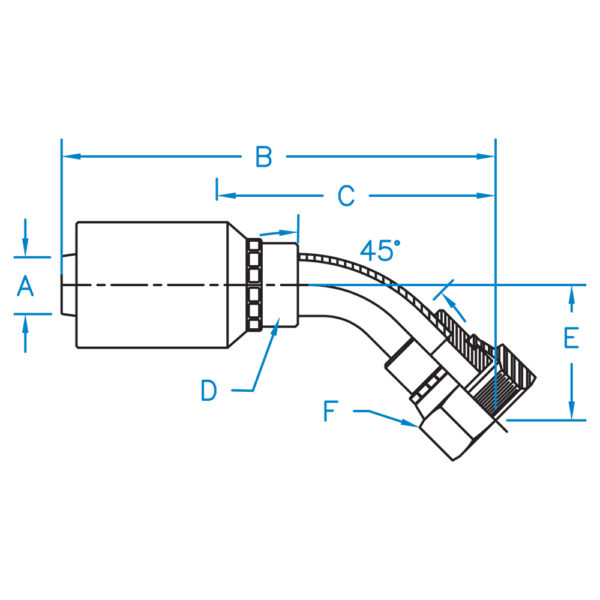

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX45-20-20-JJ	1.250	6.190	3.590	1-3/4R	1.259	1-7/8	1-1/4"	1-11/16 - 12
FFX45-24-24-JJ	1.500	6.92	4.28	2-1/8R	1.720	2-1/4	1-1/2"	2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
