FFX90-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Female O-Ring Face Seal Swivel | 90° Elbow | Carbon Steel

FFX90-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Female O-Ring Face Seal Swivel | 90° Elbow | Carbon Steel

Save $3.12 Save $3.12
$28.08
$28.08 - $28.08
$28.08
$24.96
$24.96 - $24.96
$24.96

Kurt Hydraulics
O-Ring Face Seal 90° Bent Tube Female Swivel
Specifications for Variant SKU: FFX90-08-12-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb, 3/4in Female O-Ring Face Seal
Material(s): Carbon Steel
Special Properties: Swivel

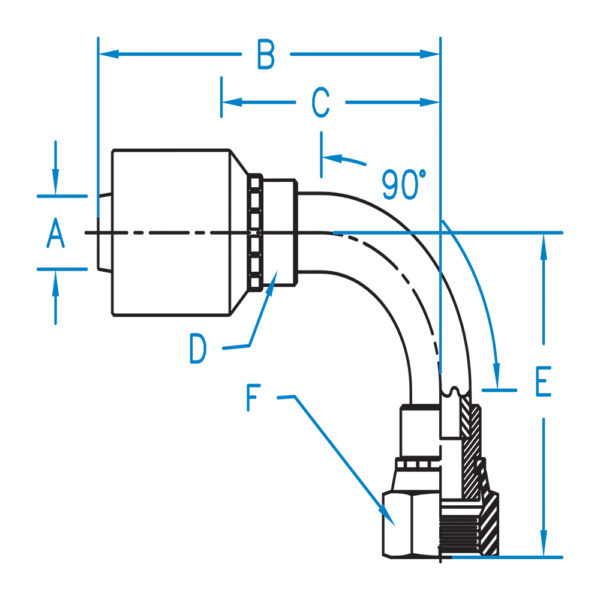

Part Number Hose I.D. (in.) B C D E F Thread
FFX90-04-04-K2 1/4" 2.70" 1.64" 11/16" 0.82" 11/16" 9/16"-18
FFX90-04-06-K2 1/4" 3.43" 1.78" 13/16" 0.91" 13/16" 11/16"-16
FFX90-04-08-K2 1/4" 2.79" 1.73" 15/16" 1.14" 15/16" 13/16"-16
FFX90-06-04-K2 3/8" 3.03" 1.66" 11/16" 0.82" 11/16" 9/16"-18
FFX90-06-06-K2 3/8" 3.17" 1.80" 13/16" 0.90" 13/16" 11/16"-16
FFX90-06-08-K2 3/8" 3.03" 1.66" 15/16" 1.14" 15/16" 13/16"-16
FFX90-08-06-K2 1/2" 3.19" 1.85" 3/4" 0.91" 13/16" 11/16"-16
FFX90-08-08-K2 1/2" 2.68" 1.71" 15/16" 1.14" 15/16" 13/16"-16
FFX90-08-10-K2 1/2" 2.95" 1.61" 1-1/8" 1.26" 1-1/8" 1"-14
FFX90-08-12-K2 1/2" 3.87" 2.56" 1-3/8" 1.88" 1-3/8" 1-3/16"-12
