FFX90-12-12-SST by Kurt Hydraulics | Female O-Ring Face Seal | 90° Elbow | Swivel | PTFE Coupling | for 3/4" Hose ID

Save $4.31

$38.79

$38.79 - $38.79

$38.79

$34.48

$34.48 - $34.48

$34.48

by Kurt Hydraulics
FFX90-SST - O-Face Seal Female 90 deg. Bent Tube Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FFX90-12-12-SST Kurt
Series:	FFX90 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties:	Swivel

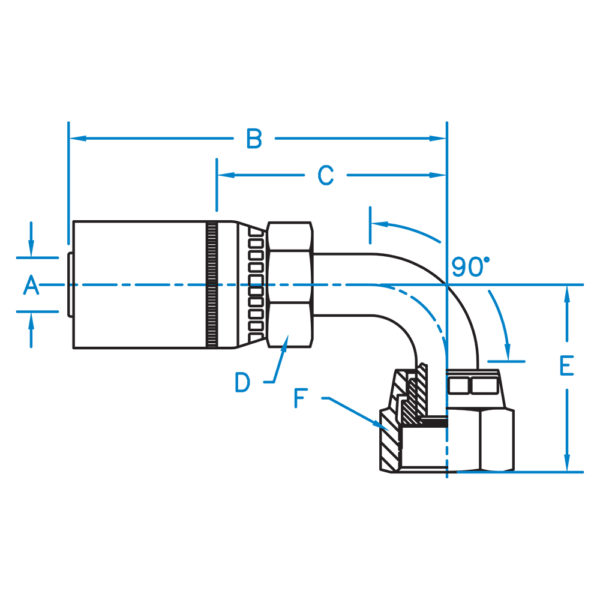

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX90-04-04-SST	0.250	3.313	1.233	5/8	0.779	11/16	1/4"	9/16-18
FFX90-04-06-SST	0.250	2.651	1.431	3/4	0.902	13/16	1/4"	11/16-16
FFX90-06-06-SST	0.375	2.743	1.431	3/4	0.902	13/16	3/8"	11/16-16
FFX90-06-08-SST	0.375	2.854	1.480	7/8	1.150	15/16	3/8"	13/16-16
FFX90-08-08-SST	0.500	3.043	1.480	7/8	1.150	15/16	1/2"	13/16-16
FFX90-08-10-SST	0.500	3.470	2.219	7/8	1.330	1-1/8	1/2"	1-14
FFX90-10-10-SST	0.625	3.470	2.125	7/8	1.330	1-1/8	5/8"	1-14
FFX90-10-12-SST	0.625	3.567	2.021	1-1/8	1.882	1-3/8	5/8"	1-3/16-12
FFX90-12-12-SST	0.750	3.777	2.021	1-1/8	1.882	1-3/8	3/4"	1-3/16-12
FFX90-16-16-SST	1.000	4.450	2.843	1-3/8	2.250	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
