FFX90-16-16-SST by Kurt Hydraulics | Female O-Ring Face Seal | 90° Elbow | Swivel | PTFE Coupling | for 1" Hose ID

FFX90-16-16-SST by Kurt Hydraulics | Female O-Ring Face Seal | 90° Elbow | Swivel | PTFE Coupling | for 1" Hose ID

Save $5.09 Save $5.09
$45.82
$45.82 - $45.82
$45.82
$40.73
$40.73 - $40.73
$40.73

by Kurt Hydraulics
FFX90-SST - O-Face Seal Female 90 deg. Bent Tube Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FFX90-16-16-SST Kurt
Series: FFX90 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female O-Ring Face Seal
Special Properties: Swivel

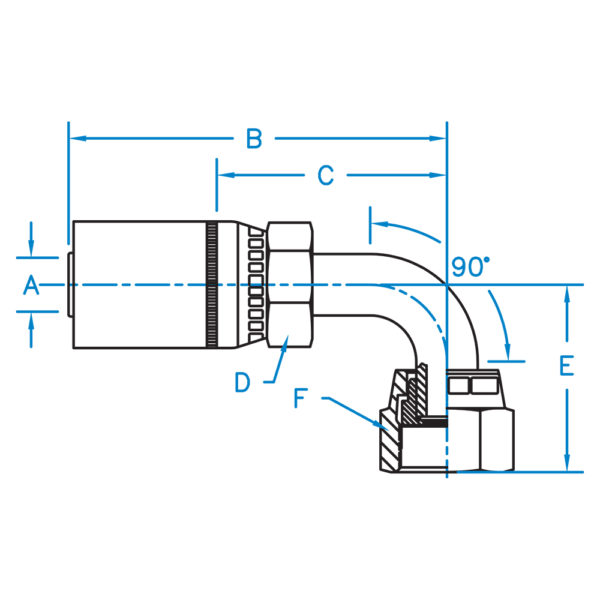

Part Number A B C D E F Hose ID
(In)		 Thread
FFX90-04-04-SST 0.250 3.313 1.233 5/8 0.779 11/16 1/4" 9/16-18
FFX90-04-06-SST 0.250 2.651 1.431 3/4 0.902 13/16 1/4" 11/16-16
FFX90-06-06-SST 0.375 2.743 1.431 3/4 0.902 13/16 3/8" 11/16-16
FFX90-06-08-SST 0.375 2.854 1.480 7/8 1.150 15/16 3/8" 13/16-16
FFX90-08-08-SST 0.500 3.043 1.480 7/8 1.150 15/16 1/2" 13/16-16
FFX90-08-10-SST 0.500 3.470 2.219 7/8 1.330 1-1/8 1/2" 1-14
FFX90-10-10-SST 0.625 3.470 2.125 7/8 1.330 1-1/8 5/8" 1-14
FFX90-10-12-SST 0.625 3.567 2.021 1-1/8 1.882 1-3/8 5/8" 1-3/16-12
FFX90-12-12-SST 0.750 3.777 2.021 1-1/8 1.882 1-3/8 3/4" 1-3/16-12
FFX90-16-16-SST 1.000 4.450 2.843 1-3/8 2.250 1-5/8 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
