FFX90L-04-04 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Long Drop Elbow | Swivel | for 1/4" Hose ID

FFX90L-04-04 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Long Drop Elbow | Swivel | for 1/4" Hose ID

Save $7.70 Save $7.70
$19.25
$19.25 - $19.25
$19.25
$11.55
$11.55 - $11.55
$11.55

by Kurt Hydraulics
FFX90L - O-Ring Face Seal 90 deg. Long Drop Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FFX90L-04-04 Kurt
Series: Braided Coupling Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 1/4in Female O-Ring Face Seal
Special Properties: Swivel

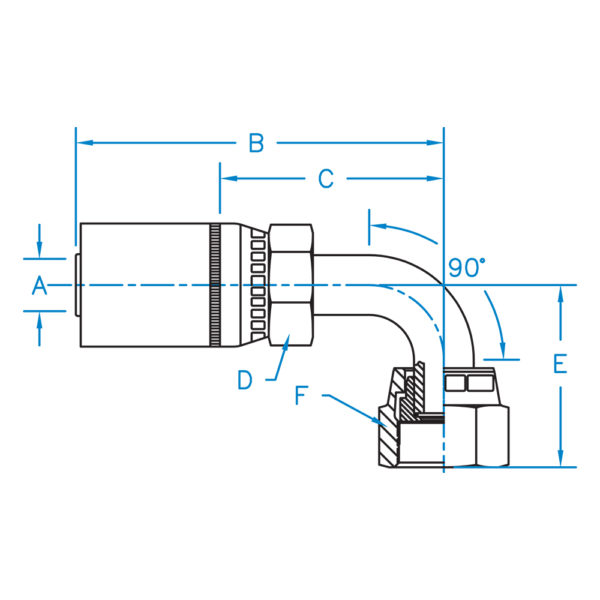

Part Number A B C D E F Hose ID
(In)		 Thread
FFX90L-04-04 0.25 2.323 1.068 5/8 1.8 11/16 1/4" 9/16-18
FFX90L-06-06 0.375 3.38 1.88 3/4 2.13 13/16 3/8" 11/16-16
FFX90L-06-08 0.375 3.677 2.177 3/4 R 2.52 15/16 3/8" 13/16-16
FFX90L-08-08 0.5 3.75 2.25 7/8 2.52 15/16 1/2" 13/16-16
FFX90L-08-10 0.5 3.709 2.209 7/8 2.755 1-1/8 1/2" 1-14
FFX90L-10-10 0.625 3.905 2.025 1-1/8 2.77 1-1/8 5/8" 1-14
FFX90L-10-12 0.625 3.716 2.216 1-1/8 3.83 1-3/8 5/8" 1-3/16-12
FFX90L-12-12 0.75 3.89 2.3 1-1/8 3.83 1-3/8 3/4" 1-3/16-12
FFX90L-16-16 1 4.648 2.368 1-3/8 4.5 1-5/8 1" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
