FFX90L-10-12 by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | 90° Long Drop Elbow | Swivel | for 5/8" Hose ID

Save $17.41

$43.53

$43.53 - $43.53

$43.53

$26.12

$26.12 - $26.12

$26.12

by Kurt Hydraulics
FFX90L - O-Ring Face Seal 90 deg. Long Drop Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX90L-10-12 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties:	Swivel, Jump Size

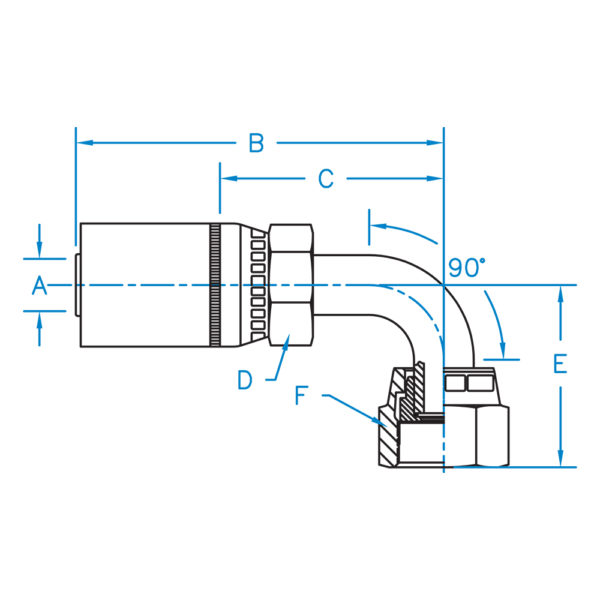

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX90L-04-04	0.25	2.323	1.068	5/8	1.8	11/16	1/4"	9/16-18
FFX90L-06-06	0.375	3.38	1.88	3/4	2.13	13/16	3/8"	11/16-16
FFX90L-06-08	0.375	3.677	2.177	3/4 R	2.52	15/16	3/8"	13/16-16
FFX90L-08-08	0.5	3.75	2.25	7/8	2.52	15/16	1/2"	13/16-16
FFX90L-08-10	0.5	3.709	2.209	7/8	2.755	1-1/8	1/2"	1-14
FFX90L-10-10	0.625	3.905	2.025	1-1/8	2.77	1-1/8	5/8"	1-14
FFX90L-10-12	0.625	3.716	2.216	1-1/8	3.83	1-3/8	5/8"	1-3/16-12
FFX90L-12-12	0.75	3.89	2.3	1-1/8	3.83	1-3/8	3/4"	1-3/16-12
FFX90L-16-16	1	4.648	2.368	1-3/8	4.5	1-5/8	1"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
