FFX90L-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | 90° Long Drop Elbow | Female O-Ring Face Seal | Swivel | for 3/4" Hose ID

Save $27.95

$69.87

$69.87 - $69.87

$69.87

$41.92

$41.92 - $41.92

$41.92

by Kurt Hydraulics
FFX90L-WHP - O-Ring Face Seal 90 deg. Bent Tube Female Swivel Long Drop - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX90L-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties:	Swivel

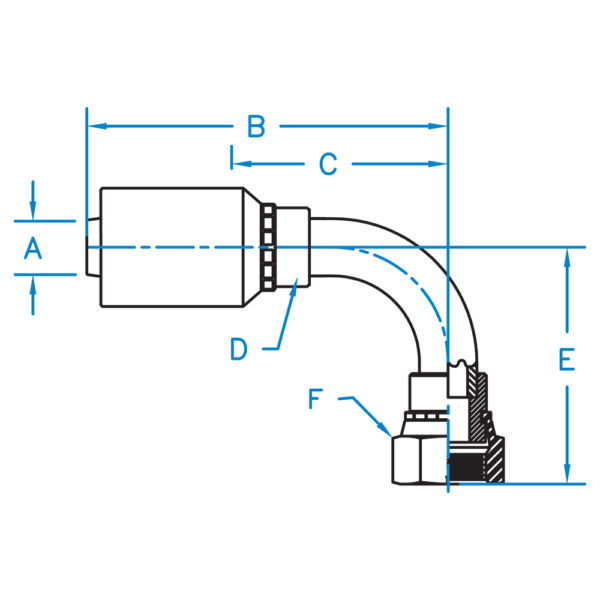

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX90L-12-12-WHP	0.750	5.022	2.592	1-3/16R	3.780	1-3/8	3/4"	1-3/16-12
FFX90L-16-16-WHP	1.000	5.591	3.061	1-7/16R	4.488	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
