FFX90M-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Female O-Ring Face Seal Swivel | Medium Drop | 90° Elbow | Carbon Steel

Save $25.17

$62.93

$62.93 - $62.93

$62.93

$37.76

$37.76 - $37.76

$37.76

Kurt Hydraulics
FFX90M - O-Ring Face Seal 90° Medium Drop Bent Tube Female Swivel

Specifications for Variant SKU: FFX90M-06-06-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb x 3/8in Female O-Ring Face Seal
Material(s):	Carbon Steel
Special Properties:	Medium Drop, Swivel

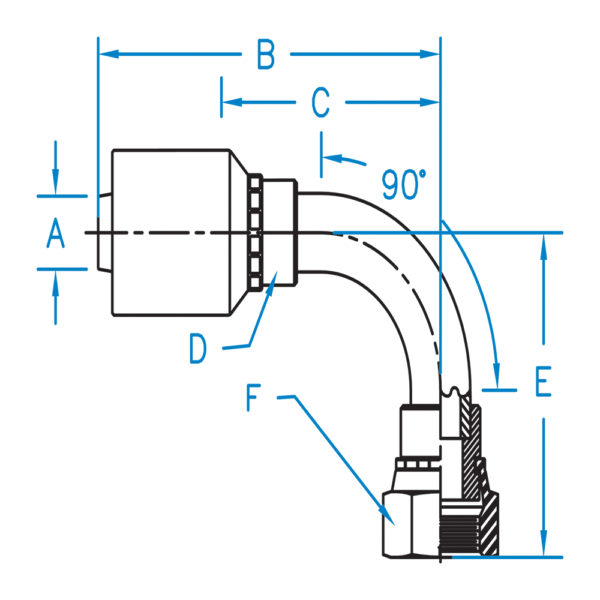

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
FFX90M-04-04-K2	1/4"	2.70"	1.64"	5/8"	1.26"	11/16"	9/16 – 18
FFX90M-06-06-K2	3/8"	3.17"	1.80"	3/4"	1.50"	13/16"	11/16 – 16
FFX90M-08-08-K2	1/2"	3.05"	1.71"	7/8"	1.61"	15/16"	13/16 – 16
FFX90M-08-10-K2	1/2"	2.95"	1.61"	7/8"	1.85"	1-1/8"	1 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
