FFX90M-06-06-W by Kurt Hydraulics | Female O-Ring Face Seal | 90 Degree Medium Drop Bent Tube | Swivel | for 3/8" Hose ID

Name: FFX90M-06-06-W by Kurt Hydraulics | Female O-Ring Face Seal | 90 Degree Medium Drop Bent Tube | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: FFX90M-06-06-W Kurt
Price: 14.44 USD
Availability: InStock

Save $9.63

$24.07

$24.07 - $24.07

$24.07

$14.44

$14.44 - $14.44

$14.44

by Kurt Hydraulics
FFX90-W - O-Ring Face Seal 90 deg. Medium Drop Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX90M-06-06-W Kurt
Series:	W Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb, 3/8in Female O-Ring Face Seal
Special Properties:	Swivel

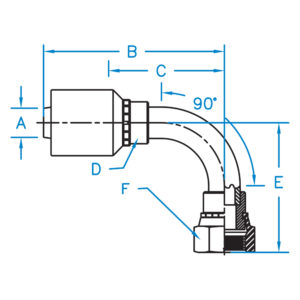

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX90M-06-06-W	0.375	3.029	1.804	3/4R	1.50	13/16	3/8"	11/16-16
FFX90M-08-08-W	0.500	3.046	1.706	7/8 R	1.614	15/16	1/2"	13/16-16
FFX90M-12-12-W	0.750	4.434	2.555	1.0R	2.283	1-3/8	3/4"	1-3/16-12
FFX90M-16-16-W	1.000	5.193	3.080	1-5/16R	2.845	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
