FFX90M-12-12 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Medium Drop Elbow | Swivel | for 3/4" Hose ID

Name: FFX90M-12-12 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Medium Drop Elbow | Swivel | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: FFX90M-12-12 Kurt
Price: 31.25 USD
Availability: InStock

Save $20.83

$52.08

$52.08 - $52.08

$52.08

$31.25

$31.25 - $31.25

$31.25

by Kurt Hydraulics
FFX90M - O-Ring Face Seal 90 deg. Medium Drop Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX90M-12-12 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties:	Swivel

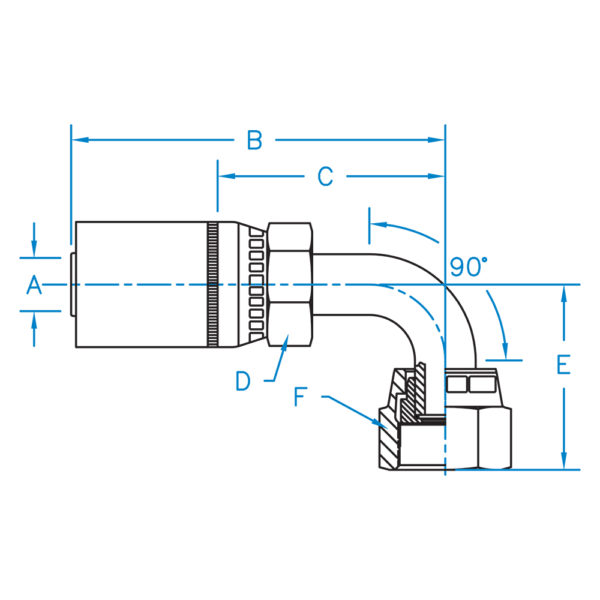

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX90M-04-04	0.250	2.323	1.068	5/8	1.260	11/16	1/4"	9/16-18
FFX90M-06-06	0.375	2.743	1.243	11/16	1.500	13/16	3/8"	11/16-16
FFX90M-08-08	0.500	3.043	1.355	7/8	1.610	15/16	1/2"	13/16-16
FFX90M-10-10	0.625	3.05	1.55	1-1/16	1.850	1-1/8	5/8"	1-14
FFX90M-12-12	0.750	3.777	1.897	1-1/8	2.280	1-3/8	3/4"	1-3/16-12
FFX90M-16-16	1.000	4.167	2.433	1-3/8	2.770	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
