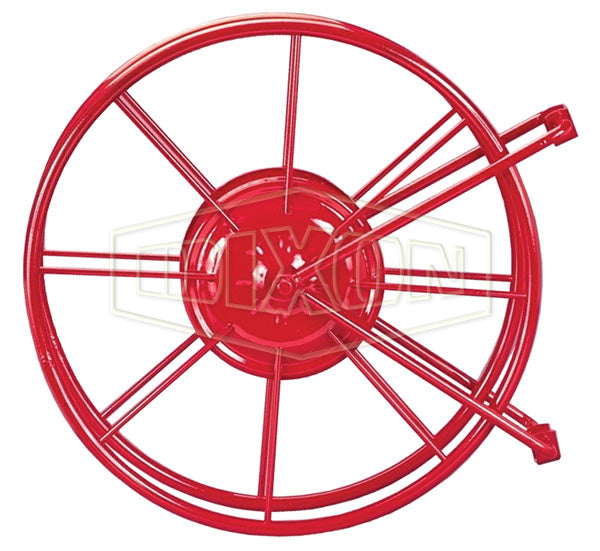

FHR-V2 Dixon Steel Style V Swing Wall Reel - Holds: 1-1/2" - 1-3/4" Hose Size

Save $73.19 Save $73.19
Original price $324.84
Original price $324.84 - Original price $324.84
Original price $324.84
Current price $251.65
$251.65 - $251.65
Current price $251.65

Dixon Fire Fittings
Fire Hose - Racks & Reels - Style V Swing Type Hose Storage Reel

Drum storage of collapsible hose avoids damaging kinks, for longer hose life.

Specifications for Variant SKU: FHR-V2 Dixon
Features:
  • Pivot mounting permits reel to swing to the proper angle preventing twists and kinks.
  • Open sides allow faster hose drying, to prevent mold and mildew.
  • Red polyester powder coat finish.
  • Wall mounting is standard, 2 wall mounting brackets included.
  • Style V5 (when used with 1-1/2" hose only), has a space between the reel sides to accommodate two widths of hose side by side, for maximum capacity in minimum space.
  • Replacement brackets: 1212-0930-4, 2 per set.
Part Number Hose Size Hose Capacity Dimensions Weight
(Lbs.)
Cover
Rack Single Double A B C D E F G H
FHR-V1 1-1/2" - 1-3/4" 100ft 75ft 50ft 8" 3" 7-1/2" 21" 23" 27" 2" 11-3/8" 18.3800 FHR-C1
FHR-V2 1-1/2" - 1-3/4" 150ft 100ft 75ft 8" 3" 7-1/2" 26" 29" 33" 2" 15" 22.0000 FHR-C
FHR-V5* 1-1/2" 300ft 200ft 150ft 8" 5-1/2" 9-1/2" 26" 30" 34" 2" 13" 23.3600 HSRC26
2" - 2-1/2" 150ft 100ft 75ft 8" 5-1/2" 9-1/2" 26" 30" 34" 2" 13" 23.3600

* FHR-V5 can hold either 1-1/2" Hose or 2" - 2-1/2" Hose
