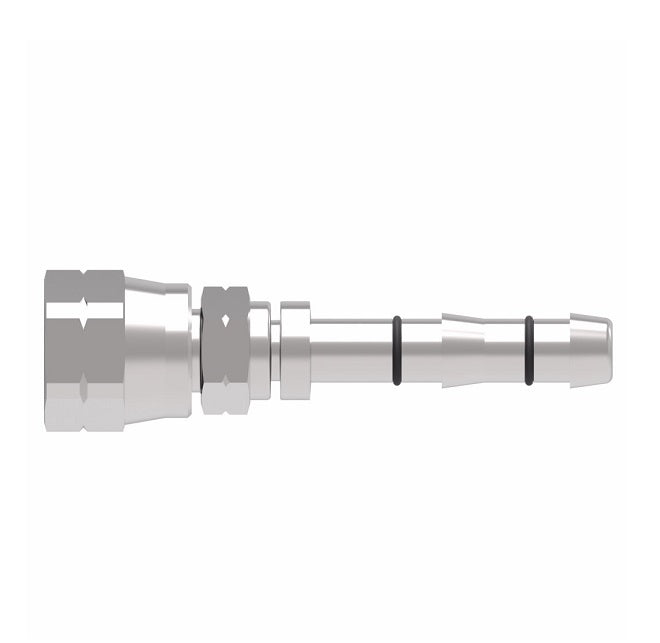

FJ3057-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb| Steel

FJ3057-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb | Steel

Name: FJ3057-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3057-04-0810S Danfoss
Price: 33.08 USD
Availability: InStock

$33.08 - $33.08

$33.08

$33.08 - $33.08

$33.08

Danfoss A/C & Refrigeration
E-Z Clip System - Female SAE 45° Flare - Straight

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: FJ3057-04-0810S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female SAE 45 Flare, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)
FJ3057-01-0606S	5/8-18	-06	2.88"	1.35"	0.56"	FF14171
FJ3057-02-0608S	5/8-18	-08	3.14"	1.62"	0.75"	FF14172
FJ3057-03-0808S	3/4-16	-08	2.96"	1.42"	0.69"	FF14172
FJ3057-04-0810S	3/4-16	-10	3.56"	2.02"	0.88"	FF14173
FJ3057-05-1010S	7/8-14	-10	3.63"	2.08"	1.00"	FF14173
FJ3057-06-1012S	7/8-14	-12	3.66"	2.08"	1.00"	FF14174
FJ3057-07-1212S	1-1/16-14	-12	3.20"	1.62"	1.25"	FF14174
