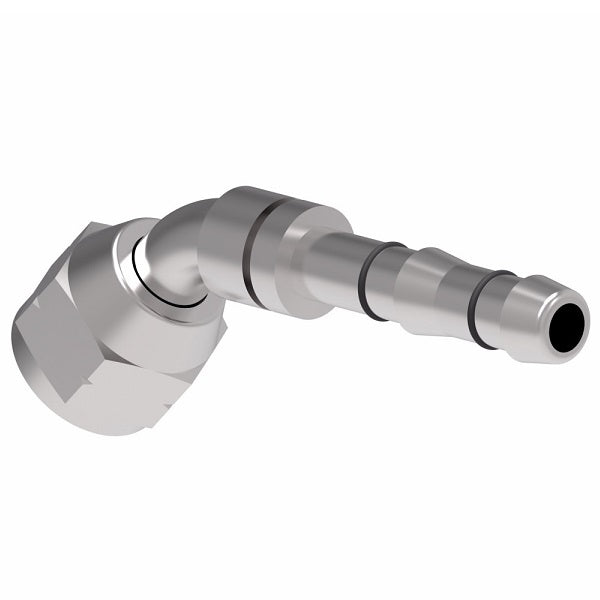

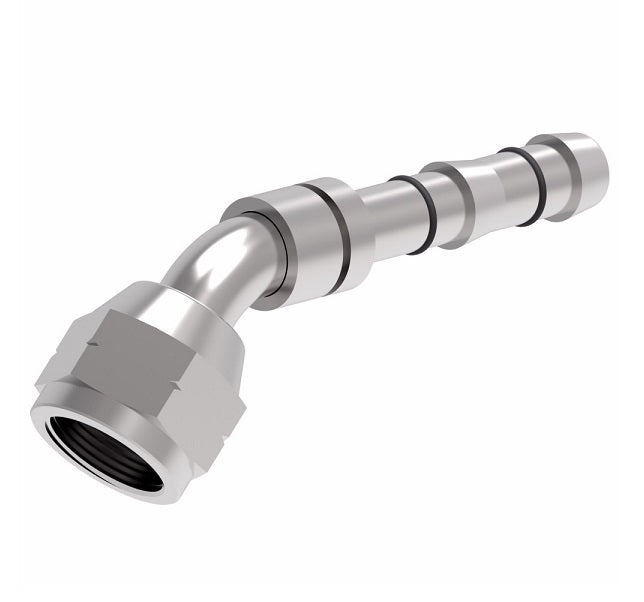

FJ3059-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb | Steel
FJ3059-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb | Steel
FJ3059-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb | Steel
FJ3059-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb | Steel

FJ3059-04-0810S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -10 Hose Barb | Steel

$35.48 - $35.48
$35.48
$35.48 - $35.48
$35.48

Danfoss A/C & Refrigeration
E-Z Clip System - Female SAE 45° Flare - 45° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3059-04-0810S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female SAE 45 Flare, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3059-0404S* 7/16-20 -04 1.57" 0.91" 0.33" 0.56" FF14175
FJ3059-01-0606S** 5/8-18 -06 2.61" 1.08" 0.39" 0.75" FF14171
FJ3059-02-0608S** 5/8-18 -08 2.62" 1.08" 0.39" 0.75" FF14172
FJ3059-03-0808S* 3/4-16 -08 2.97" 1.43" 0.55" 0.88" FF14172
FJ3059-04-0810S* 3/4-16 -10 2.98" 1.43" 0.55" 0.88" FF14173
FJ3059-05-1010S* 7/8-14 -10 3.08" 1.53" 0.63" 1.00" FF14173
FJ3059-06-1012S* 7/8-14 -12 3.11" 1.53" 0.63" 1.00" FF14174

* Universal flare

** Double notch in nut for universal type identification.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
