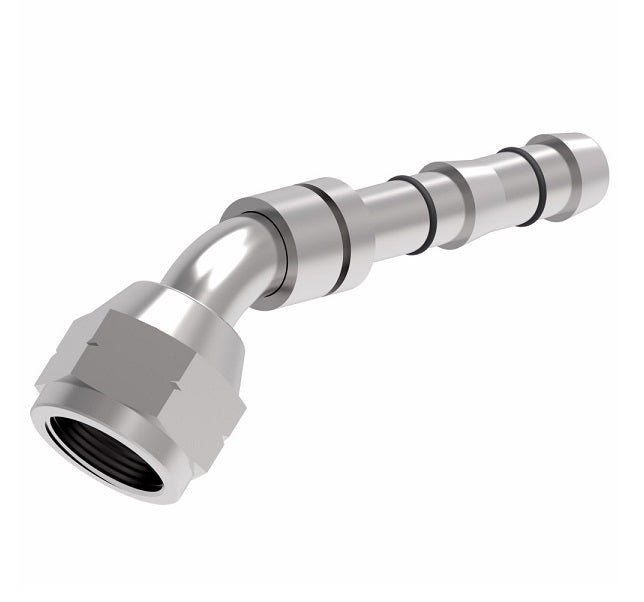

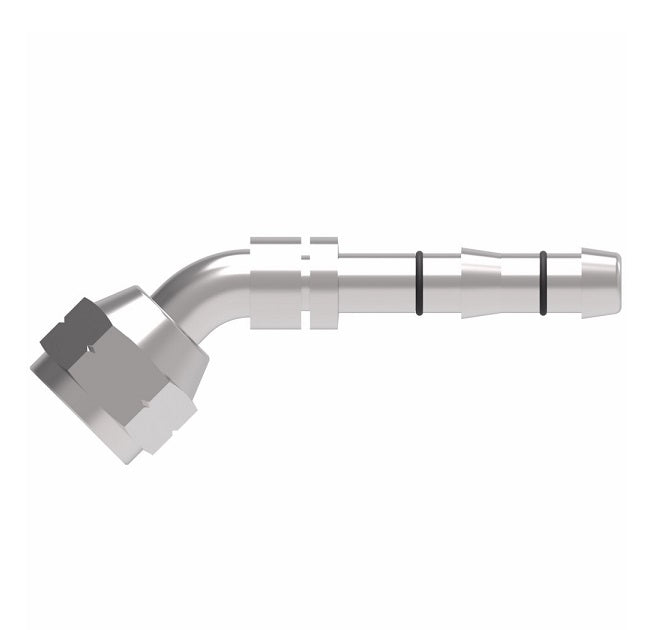

FJ3059-06-1012S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -10 Female SAE 45° Flare x -12 Hose Barb | Steel
FJ3059-06-1012S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -10 Female SAE 45° Flare x -12 Hose Barb | Steel
FJ3059-06-1012S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -10 Female SAE 45° Flare x -12 Hose Barb | Steel
FJ3059-06-1012S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -10 Female SAE 45° Flare x -12 Hose Barb | Steel

FJ3059-06-1012S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 45° Elbow | A/C Refrigeration Fitting | -10 Female SAE 45° Flare x -12 Hose Barb | Steel

$50.84 - $50.84
$50.84
$50.84 - $50.84
$50.84

Danfoss A/C & Refrigeration
E-Z Clip System - Female SAE 45° Flare - 45° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3059-06-1012S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Female SAE 45 Flare, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3059-0404S* 7/16-20 -04 1.57" 0.91" 0.33" 0.56" FF14175
FJ3059-01-0606S** 5/8-18 -06 2.61" 1.08" 0.39" 0.75" FF14171
FJ3059-02-0608S** 5/8-18 -08 2.62" 1.08" 0.39" 0.75" FF14172
FJ3059-03-0808S* 3/4-16 -08 2.97" 1.43" 0.55" 0.88" FF14172
FJ3059-04-0810S* 3/4-16 -10 2.98" 1.43" 0.55" 0.88" FF14173
FJ3059-05-1010S* 7/8-14 -10 3.08" 1.53" 0.63" 1.00" FF14173
FJ3059-06-1012S* 7/8-14 -12 3.11" 1.53" 0.63" 1.00" FF14174

* Universal flare

** Double notch in nut for universal type identification.
