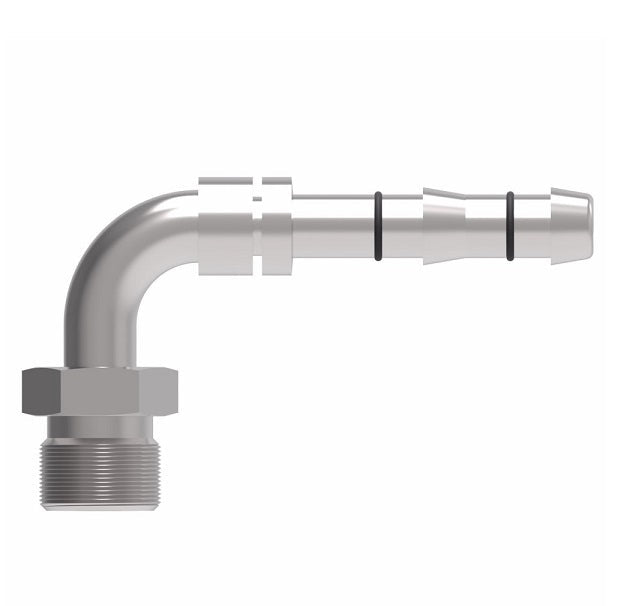

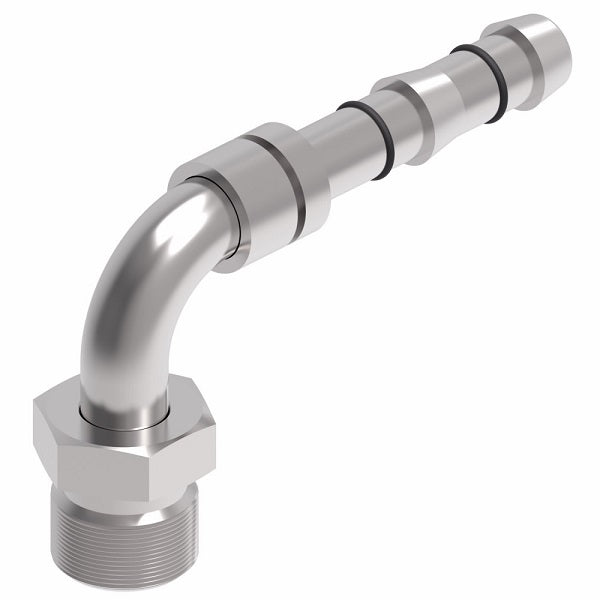

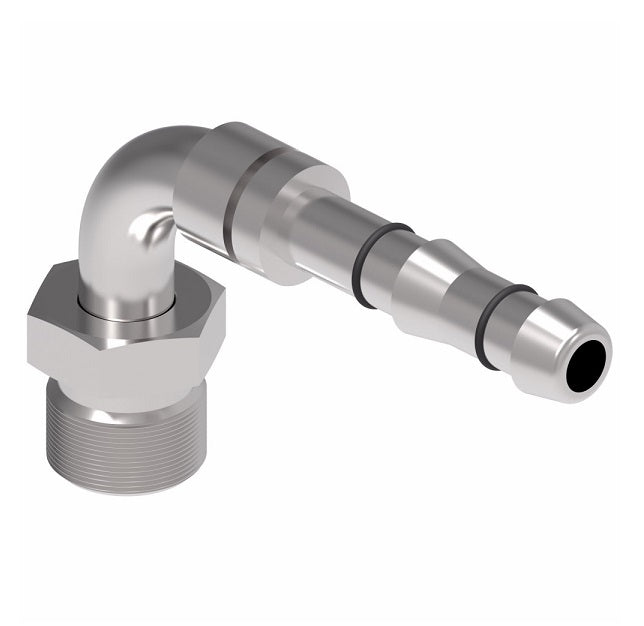

FJ3113-0810S E-Z Clip System by Danfoss | Male O-Ring Pilot (Rigid) Metric Thread 90° Elbow | A/C Refrigeration Fitting | M20 Male O-Ring Pilot x -10 Hose Barb | Steel

FJ3113-0810S E-Z Clip System by Danfoss | Male O-Ring Pilot (Rigid) Metric Thread 90° Elbow | A/C Refrigeration Fitting | M20 Male O-Ring Pilot x -10 Hose Barb | Steel

Name: FJ3113-0810S E-Z Clip System by Danfoss | Male O-Ring Pilot (Rigid) Metric Thread 90° Elbow | A/C Refrigeration Fitting | M20 Male O-Ring Pilot x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3113-0810S Danfoss
Price: 121.44 USD
Availability: InStock

$121.44 - $121.44

$121.44

$121.44 - $121.44

$121.44

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot (Rigid) Metric Thread - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Specifications for Variant SKU: FJ3113-0810S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	H Ref.	Ref.	Clip & Cage Kit (Required)	O-Ring Options
Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	H Ref.	Ref.	Clip & Cage Kit (Required)	Neoprene	Green HNBR
FJ3113-0810S	M20 x 1.5	-10	2.75"	1.20"	1.82"	0.88"	FF14173	22546-13	FF90178-13
